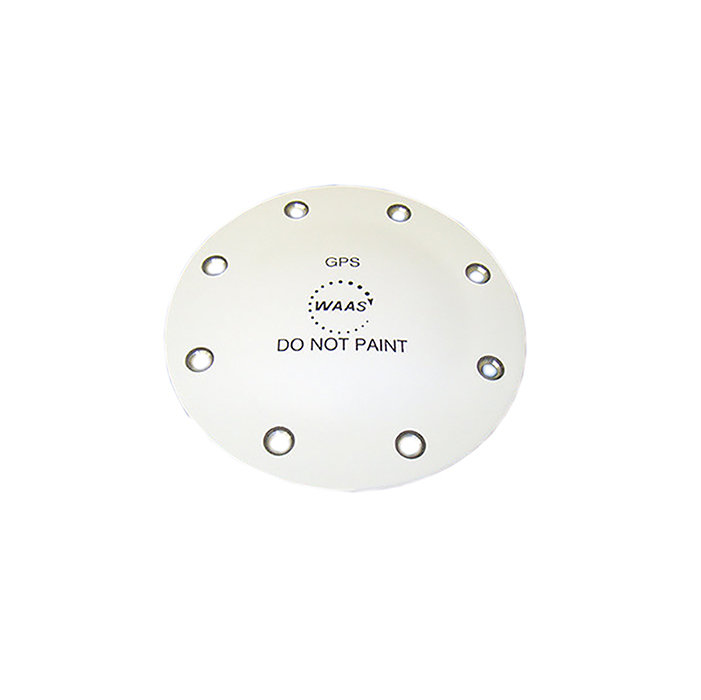

Picture of product S67-1575-237

Part #: S67-1575-237

OEM:

Sensor Systems

Desc:

GPS Antenna

Part Number :



S67-1575-237



FEATURES

  • GPS WAAS LPV antenna is a circular conformal design incorporating an extremely efficient front end filter/amplifier
  • Amplifier section utilizes advanced band-pass filters, providing significant out-of-band signal rejection
  • 29.5 dB gain and operates on +4 to +24 volts DC
  • DC grounded for lightning protection and hermetically sealed for a long service life



SPECIFICATIONS

Frequency: 1575.42 ± 10 MHz weight: 8 oz.
Impedance: 50 ohms nominal VSWR:
Polarization: RCHP Gain: (Antenna) 3 dBic @ Zenith
Power : 1 Watt Connector: TNC Female
dIAMETER: 5.10 in. finish: Skydrol Resistant Enamel
material: 6061-T6 Aluminum/Thermoplastic lightning protection: DC Grounded
temperature: -55°C (-67°F) to +85°C (+185°F) VIBRATION: 10 G's
altitude: 55,000 ft.  supply voltage: -4 to +24 VDC



Part Number: Description:
s67-1575-237 GPS Antenna



S67-1575-237
- GPS Antenna
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
