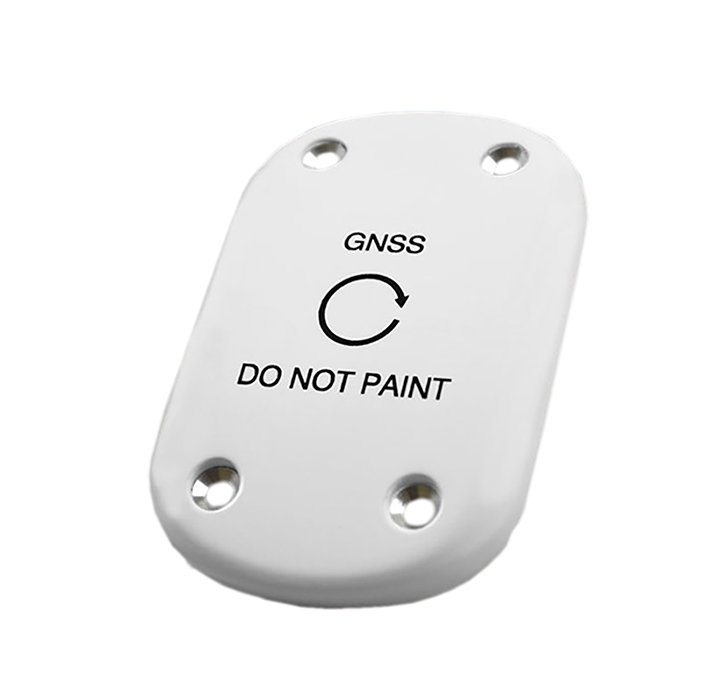

Picture of product S67-1575-338

Part #: S67-1575-338

OEM:

Sensor Systems

Desc:

GPS/GLONASS Antenna

Part Number :


S67-1575-338



FEATURES

  • L1 GPS operating at 1575.42 MHz and GLONASS operating at 1601.00 MHz
  • Molded radome provides enhanced protection against rain ice and lighting strikes
  • Application for airborne, marine, ground vehicles, and manpack installation
  • Provides high GPS GLONASS signal levels with extremely low noise operation for fast satellite acquisition
  • The amplifier’s complex filering network rejects adjacent/out of band signals that interfere with the GPS GLONASS operating frequency
  • Capable of operating with voltages between +4 to 24 VDC, due to the amplifier’s advances voltage regulator
  • Federal & Military Specs: DO-160D/E/G, ARINC 743, SAE ARP5416, AND MIL-STD-810D



SPECIFICATIONS

Frequency: 1559-1610 MHz VSWR:  ≤ 2.0:1
Gain: (Antenna) -1.0 aBic Min @ Zenith Polarization: RHCP
Impedance: 50 ohms Power: 1 Watts (+30 dBm for 5 minutes)
Lightning Protection:  DC Grounded Weight: 10 oz
supply voltage: +4 to +24 VDC @ 60 mA Max. Material: 6061-T6 aluminum/Thermoset Plastic
Finish: Skydrol Resistant Polyurethane Enamel Connector: TNC Female
axial ratio: ≤ 3.0 dB @ Zenith Temperature: -55° C(-67°F) to +70°C(+185°F)
Vibration: 10G's Altitude: 55,000 ft.



Part Number: Description:
S67-1575-338 GPS/GLONASS Antenna



X
X
X
S67-1575-338
- GPS/GLONASS Antenna
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
