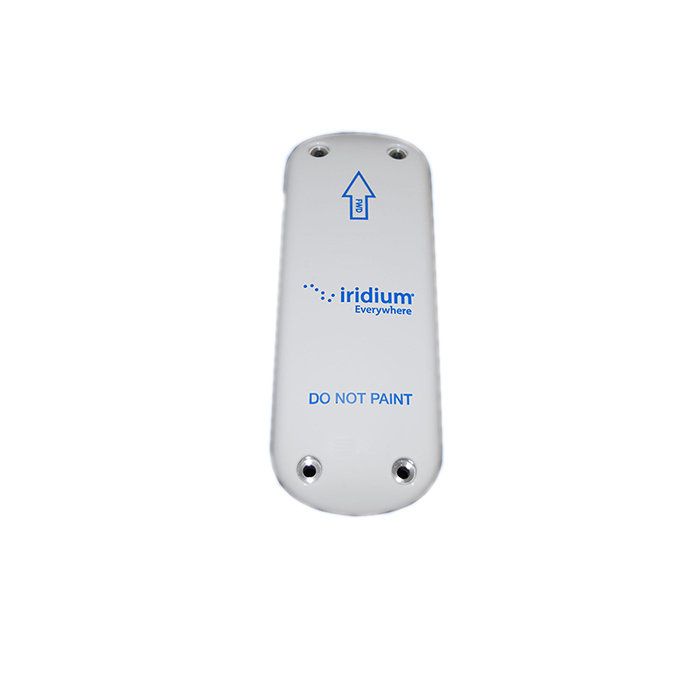

Picture of product S67-1575-365(A)

Part #: S67-1575-365(A)

OEM:

Sensor Systems

Desc:

Dual Channel Iridium Antenna (TSO C159A)

Part Number :



S67-1575-365 (A)


FEATURES
  • Dual element Iridium antenna
  • Provides full Iridium coverage from 1616 MHz to 1626.5 MHz.
  • Design provides the capability to connect two Iridium devices to the antenna with one antenna installation
  • Two TNC female connectors are provided
  • Special molded radome provides protection against rain, ice and lightning strikes​
  • Antenna is hermetically sealed and DC grounded





SPECIFICATIONS

Frequency: 1616.0 - 1626.5 MHz VSWR:  ≤ 1.8:1
width: 3.00 in. Polarization: RHCP
Impedance: 50 Ohms Power: J1/J2: 60 Watts
Lightning Protection:  DC Grounded Weight: 16.5 oz.
height: 0.82 in. Material: 6061-T6 Aluminum/Thermoset Plastic
Finish: Skydrol Resistant Polyurethane Enamel Connector: TNC Female (2)
length: 7.85 in. GAIN: > 3.0 dBic @ Zenith
Temperature: -62°C (-80°F) to +95°C (+203°F) vibration:
Altitude: -100  to 70,000 ft. gain: ± 10 G's



Part Number: Description:
S67-1575-365(a) Dual Channel Iridium Antenna (TSO C159A)



S67-1575-365(A)
- Dual Channel Iridium Antenna (TSO C159A)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
