Part #: | S67-1575-39 |
---|---|
Model: | S67-1575-39 |

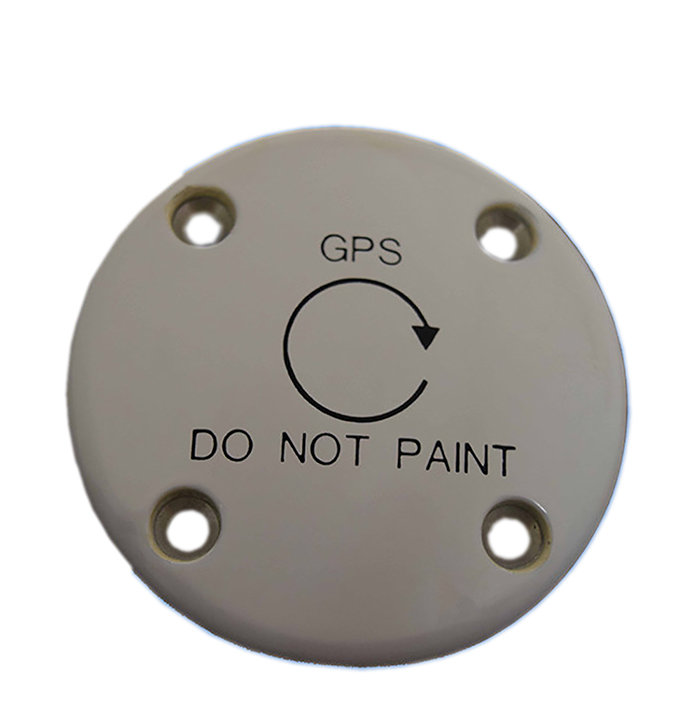

Desc: | GPS Antenna |
OEM: | Sensor Systems |
NSN: | 5985-01-441-5048 |
---|---|
Sched-B: | 8529104000 |
ECCN: | 7A994 |
Cage Code: | 13691 |
FEATURES
Frequency: | 1575.42 MHz | VSWR: | 1.5:1 |
Polarization: | RHCP | Impedance: | 50 ohms |
Antenna Gain (Typ): | 3 dBic @ Zenith | Gain Coverage: | -1.0 dBic 0° ≤ θ ≤ 75° -2.5 dBic 75° < θ ≤ 80° -4.5 dBic 80° < θ ≤ 85° -7.5 dBic θ = 90° @ Horizon |
Power Handling: | 1 watt | Lightning Protection: | DC grounded |

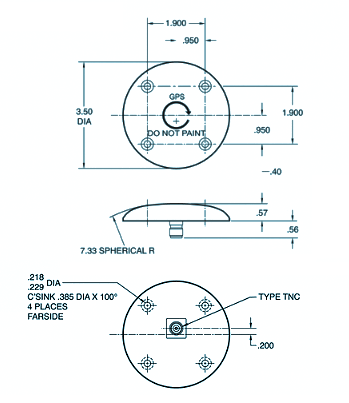

Weight: | 3 oz | Dimensions: | .57" H x 3.5" W |
Material: | 6061-T6 aluminum / thermoset plastic | Finish: | Skydrol resistant enamel |
Connector: | TNC | Temperature: | -67°F to +185°F |
Vibration: | 10 G's | Altitude: | 55,000 ft |
Part Number: | Description: |
---|---|
S67-1575-39 | GPS Antenna |
S67-1575-20 | GPS Antenna , Height .40 inches |
S67-1575-49 | GPS Antenna , with 40 dB gain preamplifier. Height .60 inches |
S67-1575-59 | GPS Antenna , with 13 dB gain preamplifier |
Serial # | 336 |
---|---|
Condition | OH |
Mods | - |
Tag Date | 10/15/24 |
Shop | Avionics Specialist Inc. |
Warranty | 6 Months |
Serial # | 492-45028 |
---|---|
Condition | NEW |
Mods | - |
Tag Date | 01/31/23 |
Shop | Sensor Systems |
Warranty | 1 Year |
NSN: 5985-01-441-5048
Price | Condition | Status |
---|---|---|
$1,025.00 | NEW OUTRIGHT | 1 IN STOCK |
$695.00 | SV OUTRIGHT | 1 IN STOCK |
