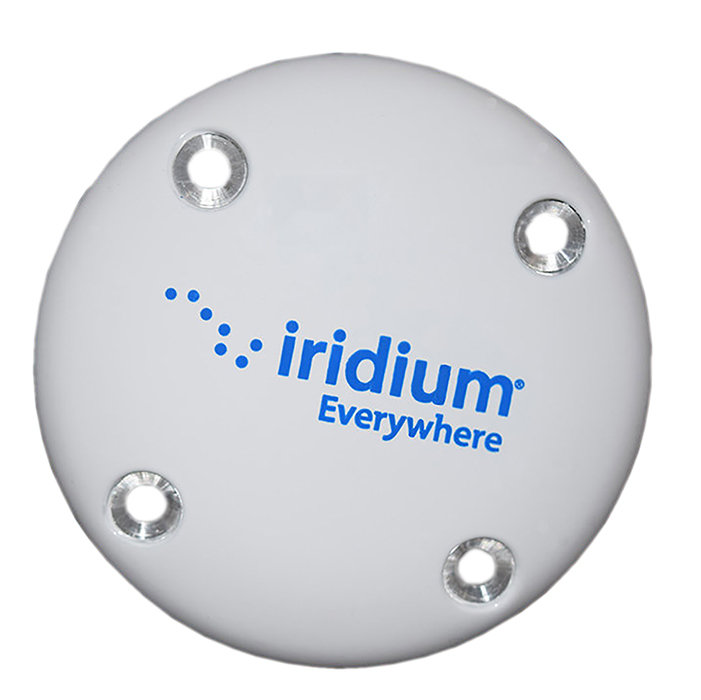

Picture of product S67-1575-409

Part #: S67-1575-409

OEM:

Sensor Systems

Desc:

Single Channel Iridium Antenna

Part Number :


S67-1575-409



FEATURES

  • Satcom / Iridium Antenna
  • TSO Approved
  • From 1616.0 to 1626.5 MHz
  • World-wide Iridium system operations
  • Supports FOI (FANS over Iridium)
  • Supports ADS-B over Iridium
  • Is approved as Iridium Compatible Equipment (ICE)
  • Low-profile, molded radome material and design
  • Protection against lightning strikes, rain and ice
  • DC-grounded
  • Hermetically sealed
  • Qualified for high-speed military aircraft as well as ARINC applications
  • Federal & Military Specs: TSO-C159a, DO-160D/E, DO-262A, MIL-DTL-5541, MIL-HDBK-5400, MIL-STD-810



SPECIFICATIONS
Frequency: 1616.0 - 1626.5 MHz VSWR: 1.5:1
Polarization: RHCP Impedance: 50 Ohms
Power handling: 60 watts CW Gain:  +3 dBic @ Zenith
Lightning Protection: DC Grounded Weight: 6 oz
Dimensions:

.66" H x 3.5" Diameter

Material: 6061-T6 aluminum, Thermostat plastic
Finish: Skydrol-resistant enamel Connector TNC Female
Temperature: -67°F to 185°F



S67-1575-160 footprint

Part Number: Description:
s67-1575-409 Single Channel Iridium Antenna



1.8"H x 6.25"W
S67-1575-409
- Single Channel Iridium Antenna
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
