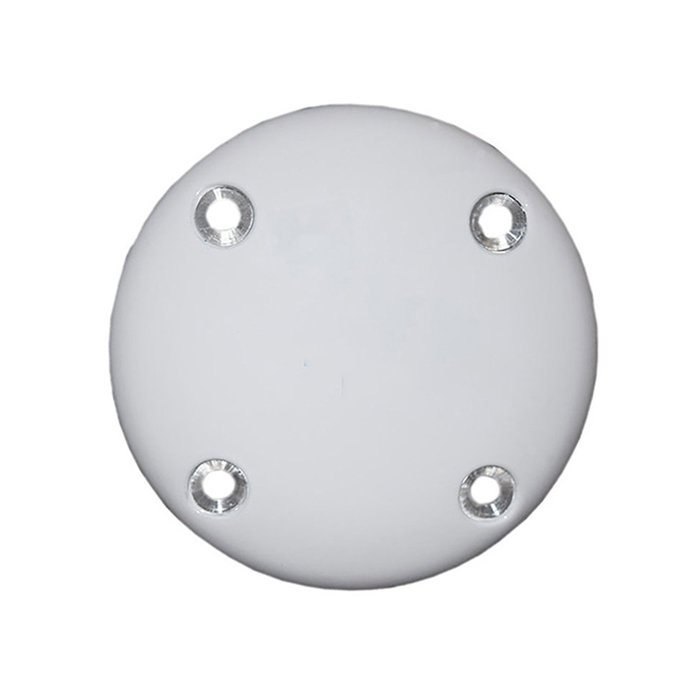

Picture of product S67-1575-410
Part #: S67-1575-410
Model: S67-1575-410
Desc: GPS/Iridium Antenna
OEM: Sensor Systems
Sched-B: 8529104000
ECCN: 7A994
Part Number :






FEATURES

  • Iridium antenna with a frequency range of 1616 MHz to 1626.5 MHz for world-wide Iridium system operations
  • Supports FOI (FANS over Iridium)
  • Designed with a low-profile
  • Molded radome that ensures superior protection against lightning strikes, rain, and ice
  • Rugged antenna is DC grounded and hermetically sealed
  • Qualifies for high-speed military aircraft



SPECIFICATIONS

Frequency: 1616 MHz to 1626.5 MHz  VSWR:  ≤ 1.5:1
Impedance: 50 ohms Power HANDLING: 60 Watts Contiuous
axial ratio:  ≤ 2.5 dB @ Zenith Weight: 6 oz
HEIGHT: .66 in. Material: 6061-T6 Aluminum Alloy / Thermset Plastic
finish: Skydrol Resistant Polyurethane Enamel Connector: TNC Female
Altitude: 55,000 ft. Temperature: -55°C (67°F) to +85°C (+185°F)
polarization: RHCP FEDERAL & MILITARY: FAA TSO-C159c, DO-160C/D/E, DO-262B, MIL-HDBK-5400, and MIL-STD-810C/D
DIAMETER: 3.50 in lightning protection: DC Grounded
gain: Weighted Avg.  -2dBic min



Part Number: Description:
S67-1575-410 GPS/Iridium Antenna



X
X
X
Serial # 1002-0154
Condition SV
Mods -
Tag Date 10/02/24
Shop Hondo Aerospace
Warranty 6 Months
S67-1575-410
- GPS/Iridium Antenna
Price Condition Status
$1,950.00 SV OUTRIGHT 1 IN STOCK
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
