Picture of product S67-1575-414

Part #: S67-1575-414

OEM:

Sensor Systems

Desc:

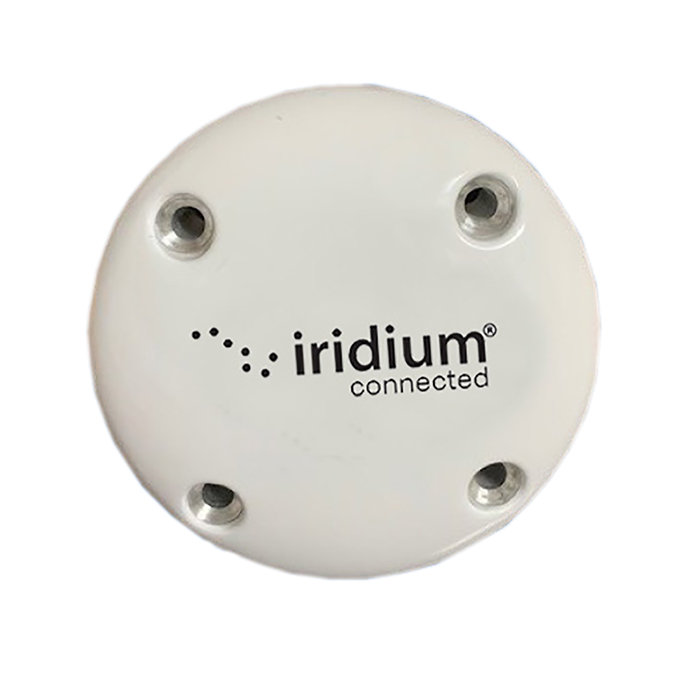

Certus 9770 Iridium Passive Antenna

Part Number :



S67-1575-414



FEATURES

  • Designed to interface with the Iridium Certus 9770 voice and data receiver
  • Operates on the L-Band network at speeds that range from 22 kbps to 88 kbps
  • The antenna, when paired with a Certus 9770 transceiver, has the capability of making audio and video transmissions 35 times faster than other receivers
  • S67-1575-414 antenna is a direct mounting replacement for Sensor Systems’ legacy iridium antennas, S67-1575-109 and S67-1575-409.
  • Federal & Military Specs: FAA TSO C159d, DO-160E/G, DO-262C, and MIL-HDBK-5400



SPECIFICATIONS
Frequency: 1016-0-1626.5 MHz  VSWR: 1.8:1
Weight: 13 oz. Polarization: RHCP
Impedance: 50 Ohms diameter: 3.50 in.
finish: Skydrol Resistant Polyurethane Enamel Material: 6061-T6 aluminum ALLOY/ Thermoset Plastic
Temperature: -55°C (-67°F) to +70°C (+158°F) Connector:  TNC Female
Altitude: 50,000 ft



Part Number Description:
S67-1575-414 Certus 9770 Iridium Passive Antenna



S67-1575-414
- Certus 9770 Iridium Passive Antenna
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
