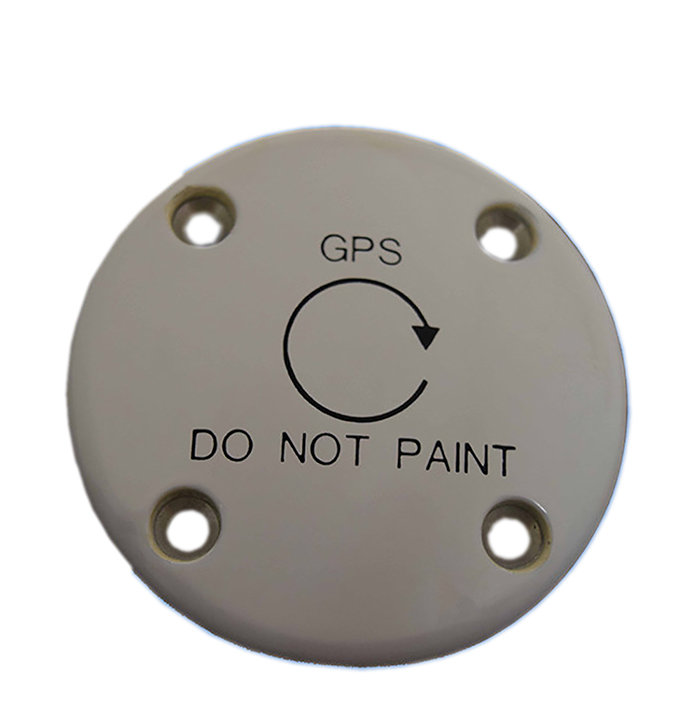

Picture of product S67-1575-49

Part #: S67-1575-49

NSN:

5985-01-441-5347

OEM:

Sensor Systems

Desc:

GPS Antenna

Part Number :


S67-1575-49
FEATURES
  • L1 GPS Antenna
  • Spherical radius molded radome
  • Enhanced protection against rain, ice, and lightning strikes
  • Application for airborne, marine, ground vehicles, and manpack installation
  • Federal & Military Specs: FAA TSO C115a and C129, DO-160, MIL-STD-810, MIL-C-5541, MIL-E-5400



SPECIFICATIONS
Frequency: 1575.42 MHz  VSWR: 2.0:1
Polarization: RHCP Impedance: 50 ohms
Antenna Gain (Typ): 3 dBic @ Zenith  Gain Coverage:  -1.0 dBic   0°  ≤ θ ≤ 75°  -2.5 dBic 75° < θ ≤ 80°  -4.5 dBic 80° < θ ≤ 85°  -7.5 dBic     θ = 90° @ Horizon
Gain: 40.0 dB Noise Figure: 2.8 dB
Power Handling: 1 watt  Voltage: +4 to 24 VDC
Current: 45 mA  Lightning Protection: DC grounded
Weight: 5 oz Dimensions: .60" H x 3.5" W
Material:  6061-T6 aluminum / thermoset plastic  Finish:  Skydrol resistant enamel
Connector:  TNC  Temperature:  -67°F to +185°F
Vibration:  10 G's  Altitude:  55,000 ft

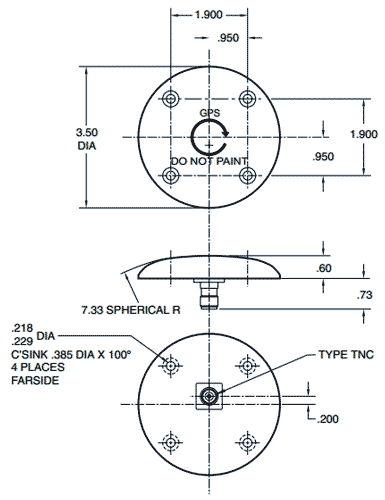

S67-1575-49 Diagram



Part Number GPS Antenna Description:
S67-1575-20 Basic model. Height .40", Weight 3 oz, VSWR 1.5:1
S67-1575-39 Same as above except for 26 dB gain preamplifier
S67-1575-49  See details above
S67-1575-59  Same as above except for 13 dB gain preamplifier
