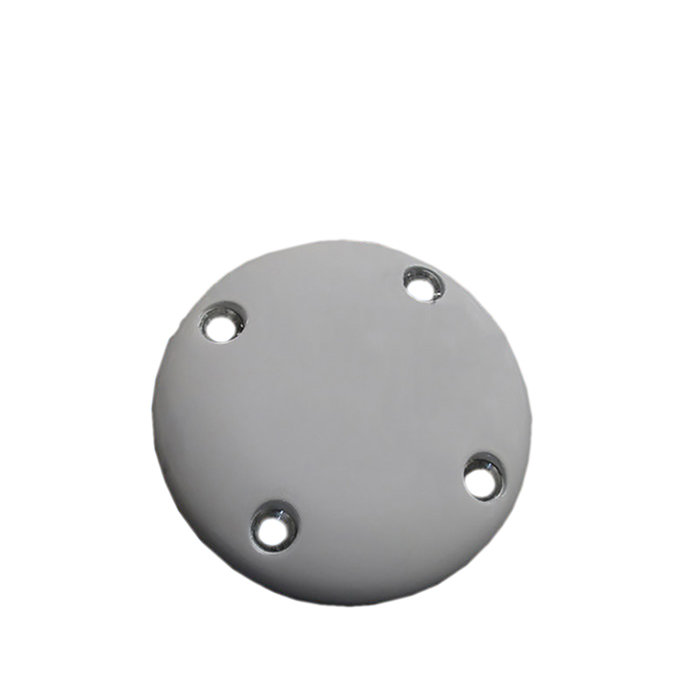

Picture of product S67-1575-65

Part #: S67-1575-65

OEM:

Sensor Systems

Desc:

XM/Sirius Radio Antenna

Part Number :


S67-1575-65



FEATURES

  • Active, low-profile antenna operating at 2326 MHz for Sirius Satellite Radio receivers
  • Provides aviation weather information and cabin entertainment services
  • 29.5 dB gain amplifier and is equipped with a TNC female connector
  • Machined aluminum base with a 3½“ diameter
  • Radome design and materials provide enhanced protection from rain, ice and lightning strikes
  • Federal and Military Specs: DO-160C, MIL-STD-810, FAA PMA



SPECIFICATIONS
Frequency: 2326 ± 7 MHz  VSWR: ≤2.0:1
supply voltage: +3.3 to +28 VDC @ 45 mA Max. Polarization: LCHP
Impedance: 50 ohms  Power: 100 watts (+20 dBm)
gain (preamplifier): 29.5 ± 3dB Weight: 7.0 oz.
Height: 0.73 inches Diameter: 3.50 inches
Material: 6061-T6 Aluminum / Thermoset Plastic Finish: Skydrol resistant enamel
Connector: TNC Female Temperature: -55°C to +85°C(-67°F to +185°F )
Vibration:  10 G's Altitude:  55,000 ft





Part Number: Description:
S67-1575-65 XM/Sirius Radio Antenna



S67-1575-65
- XM/Sirius Radio Antenna
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
