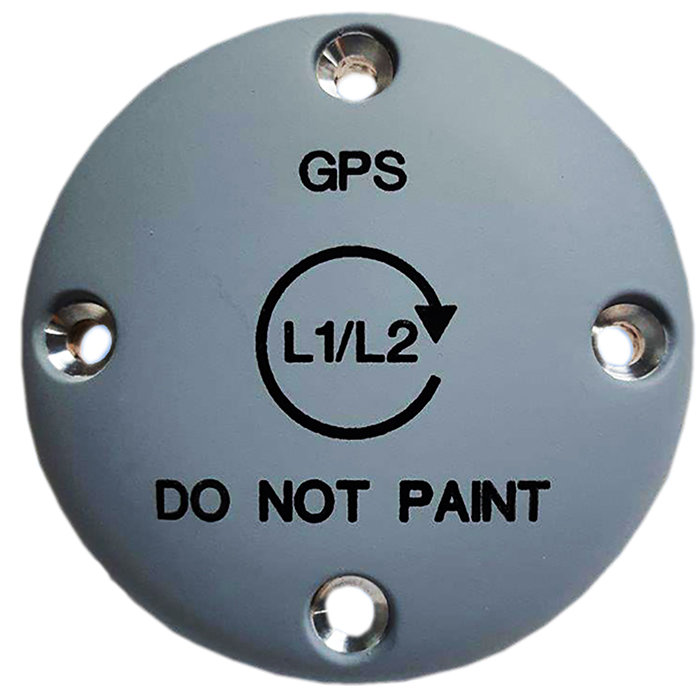

Picture of product S67-1575-714

Part #: S67-1575-714

OEM:

Sensor Systems

Desc:

GPS Antenna, L1/L2 Passive, GPS

Part Number :




S67-1575-714

FEATURES

  • Dual-band L1/L2 passive GPS antenna with a VSWR of 2.0:1
  • Spherical radius molded radome provides enhanced protection against rain, ice and lightning strikes
  • Qualified for high speed military aircraft and dual frequency surveying applications
  • Dual band GPS antenna is capable of receiving the M-Code, C/A and Y-Legacy Codes
  • FEDERAL & MILITARY SPECS: RTCA DO-160G and DO-228, MIL-HDBK-5400, and SAE ARP5416



SPECIFICATIONS
Frequency: 1575±12 MHz(L1), 1227± MHz(L2) VSWR: ≤2.5:1
Pattern: Cardioidhemispheric RHCP (high angle) Omni/Az, Cos/EI (low angle) Polarization: RHCP
Impedance: 50 Ohms Power: 1 watt
Gain:  >-1 dBic @ Zenith  Weight: 6 oz.
Connector: TNC Female Material: 6061-T6 Aluminum Alloy/ Thermoset Plastic
Finish: Skydrol Resistant Polyurethane Enamel HEIGHT: 0.60 in.
Diameter: 3.50 in.  AXIAL RATIO:  ≤3.0 dB @ Zenith
Temperature: -55 °C (-67°F) to +85°C (+185°F) Altitude: 50,000 ft
lightning: DC Grounded



Part Number: Description:
S67-1575-714 GPS Antenna, L1/L2 Passive, GPS



S67-1575-714
- Dual-band L1/L2 Passive GPS Antenna
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
