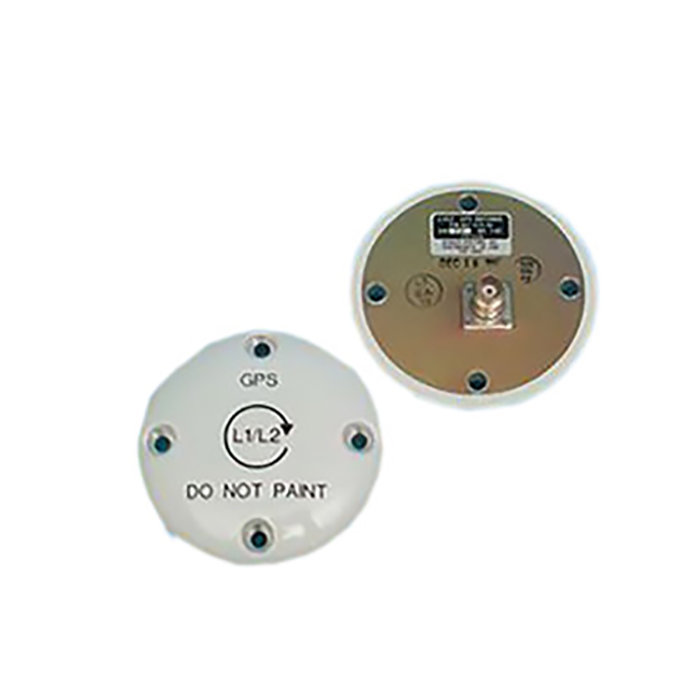

Picture of product S67-1575-96

Part #: S67-1575-96

NSN:

5985-01-448-5878

OEM:

Sensor Systems

Desc:

GPS Antenna

Part Number :


S67-1575-96



FEATURES

  • Dual-band L1/L2 active GPS Antenna
  • Provides low-noise coverage at 1227.6 MHz and 1575.42 MHz with VSWR of 2.0:1
  • Amplifier integrated under the radome
  • Additional filtering provides significant out-of-band rejection and reduced possibility of saturation by non-GPS signals
  • DC bias provided through the coax connector
  • Spherical-radius molded radome provides enhanced protection against rain, ice, and lightning strikes
  • Qualified for high-speed military aircraft or dual-frequency surveying applications
  • Federal and Military Specs: FAA TSO C129, DO-16-, MIL-STD-810, MIL-C-5541, MIL-E-4500



SPECIFICATIONS
Frequency: 1565-1585 MHz (L1) 1217-1237 MHz (L2) VSWR: 2.0:1
Polarization: RHCP Impedance: 50 ohms
Antenna Gain (Typ): 3 dBic @ Zenith Gain Coverage (min): -1.0 dBic  0°≤ θ ≤ 75° -2.5 dBic 75°<θ ≤ 80°  -4.5 dBic 80°< θ ≤ 85°  -7.5 dBic θ = 90° @ Horizon
Gain: 40.0 dB Noise Figure: 2.8 dB
Power Handling: 1 watt Voltage: +4 to +24 VDC
Current: 65 mA Lightning Protection: DC grounded
Weight: 7 oz. Diameter: 3.50 in.
Material: 6061-T6  aluminum / thermoset plastic Finish: Skydrol resistant enamel
Connector: TNC Temperature: -80°F to +203°F
Vibration: 10 G's Altitude: 70,000 ft

S67-1575-96 Diagram



Part Number: Description:
S67-1575-76 GPS Antenna, with 13.0 dB gain and 50 mA current
S67-1575-86 GPS Antenna, witht 26.5 dB gain and 60 mA current
S67-1575-96 GPS Antenna



Serial # 540-7863
Condition NEW
Mods -
Tag Date 02/08/24
Shop Sensor Systems
Warranty 1 Year
Serial # 540-7864
Condition NEW
Mods -
Tag Date 02/08/24
Shop Sensor Systems
Warranty 1 Year
S67-1575-96
- GPS Antenna

NSN: 5985-01-448-5878

Price Condition Status
$2,850.00 NEW OUTRIGHT 2 IN STOCK
