Part #: S67-2002-13
Model: S67-2002-13
Desc: Altimeter Antenna Low Profile
OEM: Sensor Systems
NSN: 5985-01-424-0025
Cage Code: 13691
Part Number :






FEATURES

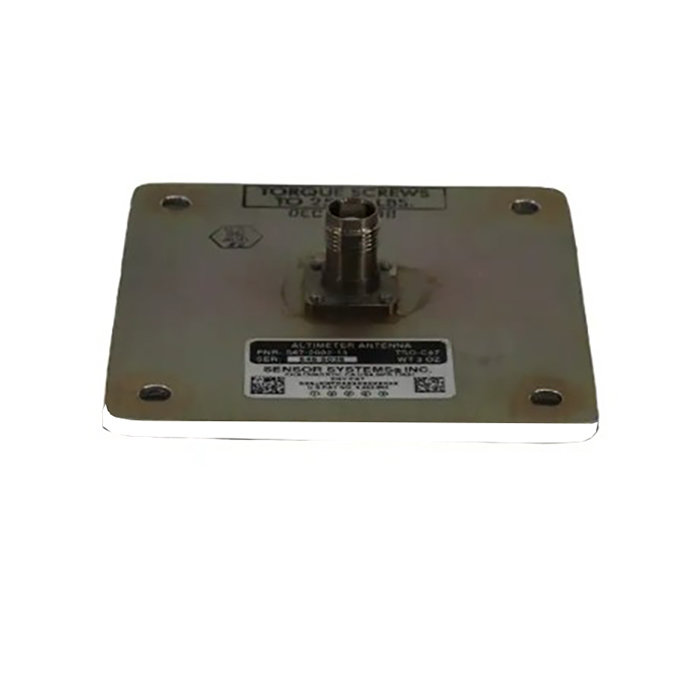

  • S67-2002-13 is a low-profile radar altimeter antenna
  • Designed for improved performance and reduced size



SPECIFICATIONS

Frequency Range: 4200-4400 MHz VSWR:  ≤1.5:1 (4275-4325 MHz), ≤2.0:1 (4200-4400 MHz)
Lightning Protection: DC grounded Connector:  TNC
Polarization: Linear Impedance:  50 ohms
Weight:  0.2 lbs Dimensions:  0.4" H x 3.7" L x 3.6" W
Temperature Range:  -55° C to +85° C (-67°F to +185°F) Operational Altitude: Up to 45,000 ft
Materials: 6061-T6 aluminum, teflon glass Finish:  Skydrol-resistant enamel
Mounting: Unthreaded hole, requires four 10-32 screws
Part Number: Description:
s67-2002-13 Altimeter Antenna








S67-2002-13
- Altimeter Antenna

NSN: 5985-01-424-0025

Price Condition Status
$1,495.00 OH OUTRIGHT DUE IN
$1,995.00 NEW OUTRIGHT REQUEST LEAD TIME
