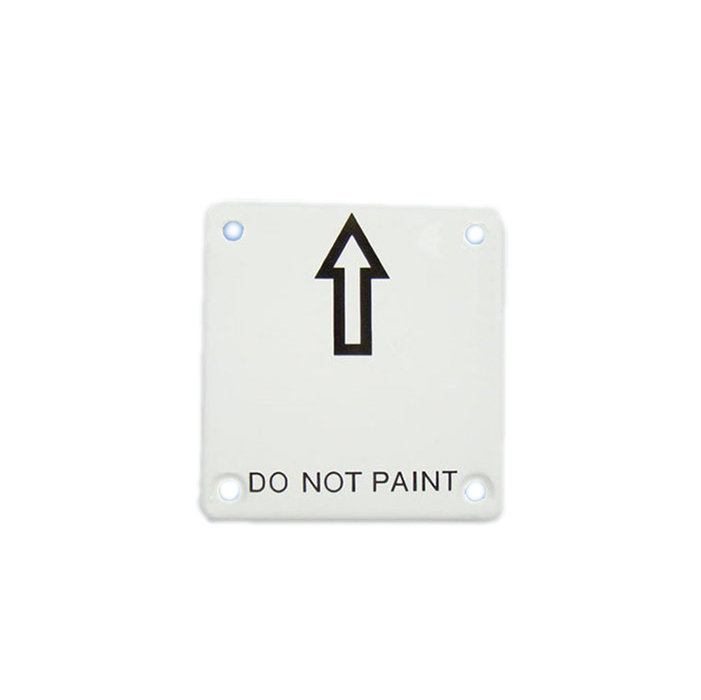

Picture of product S67-2002
Part #: S67-2002
Model: S67-2002
Desc: Radio Altimeter Antenna
OEM: Sensor Systems
NSN: 5985-01-229-5610
Sched-B: 8529104000
ECCN: 7A994
Cage Code: 13691
Part Number :


S67-2002

FEATURES

  • Flush mounted radio altimeter antenna ideal for general aviation radio altimeter systems such as Bendix/King KRA-405 & KRA-405B, Collins ALT-50A & ALT-55B, FreeFlight RA4500 and more.
  • Can be used as a direct replacement for KA-54A (see link)
  • Small size provides easy mounting
  • Ideal for general aviation applications
  • Functionally equivalent to Bendix/King KA-54A and Collins ANT-52 Antennas
  • National Stock Number (NSN) 5985-01-159-9930 and 5985-21-898-6153
  • Conductive Gasket PN S67-200222
  • Mounting Screws PN MS24693C272



SPECIFICATIONS

Temperature Range: -65 to 185F Altitude: Up to 45000 ft.

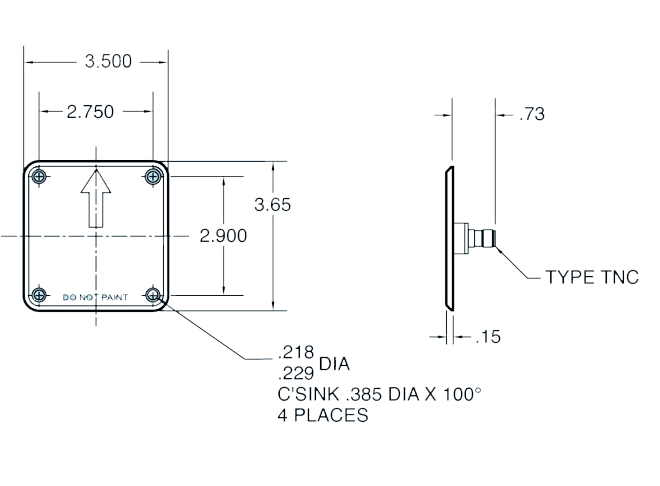

Weight: 3 oz. Dimensions: .15" H x 3.65"L x 3.65"W
Material: 6061-T6 aluminum/teflon glass Finish: Skydrol resistant enamel
Connector: TNC Frequency: 4200-4400 MHz
Polarization: Linear Impedance: 50 ohms
Side Lobe Level: -40 db Gain: 9.5 dBi
TSO: C87, ARINC 707/552, DO-160 MIL SPEC: MIL-STD-810, MIL-A-9094, MIL-B-5087, MIL-E-5400
Part Number: Description:
S67-2002 Radio Altimeter Antenna
S67-2002-12 Same as above except circular baseplate requires mounting with eight (8) screws
S67-2002-14 Same as above except for connector length of 1.0 inch for Raytheon application
S67-2002-45  Same as above except for metalized countersinks and conductor lenght of 1.4 inches. Embraer 170/190 application



Serial # 1954
Condition OH
Mods -
Tag Date 03/07/25
Shop Camtronics LLC
Warranty 6 Months
Serial # 543-118308
Condition NEW
Mods -
Tag Date 09/20/24
Shop Garmin
Warranty 1 Year
Serial # 543-118315
Condition NEW
Mods -
Tag Date 09/20/24
Shop Garmin
Warranty 1 Year
Serial # 543-118317
Condition NEW
Mods -
Tag Date 09/20/24
Shop Garmin
Warranty 1 Year
Serial # 543-118318
Condition NEW
Mods -
Tag Date 09/20/24
Shop Garmin
Warranty 1 Year
Serial # 17333
Condition OH
Mods None
Tag Date 08/29/24
Shop Unicorp Systems Inc.
Warranty 6 Months
S67-2002
- Radio Altimeter Antenna

NSN: 5985-01-229-5610

Price Condition Status
$1,775.00 NEW OUTRIGHT 4 IN STOCK
$1,395.00 OH OUTRIGHT 2 IN STOCK

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

The arrows on some radar altimeters are a reference reminder that the antennas must be mounted on the same longitudinal axis on the aircraft. Normally, the antennas are mounted so that the arrow head of one antenna points to the tail of the other antenna arrow. The 2 arrows can point at each other as long as they are on the same longitudinal axis. Click here to view a basic diagram of proper radar altimeter antenna installation.
