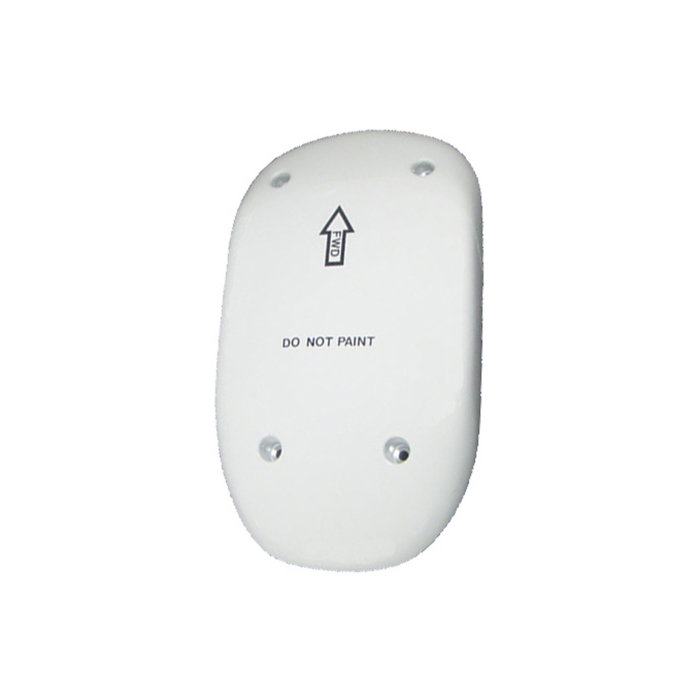

Picture of product S72-1735-24
Part #: S72-1735-24
Model: S72-1735-24
Desc: TCAS Antenna
OEM: Sensor Systems
Sched-B: 8529109000
ECCN: 7A994
Part Number :






FEATURES

  • Directional 4-element array antenna for Garmin GTS 800 TAS systems designed for high speed aircraft
  • Teardrop-style radome is constructed of special material providing enhanced lightning strike protection
  • The polyfilm shield mitigates erosion and collision damage
  • Low profile
  • FEDERAL & MILITARY SPECS:  RTCA DO-160B, FAA TSO C119, ARINC 735A-1, MIL-STD-454, DO-185A,  MIL-DTL-554



SPECIFICATIONS

Frequency: 1030 ± 1 MHz VSWR:   ≤ 1.5:1
length: 11.00 Inches Polarization: Direct Mode: Vertical
Impedance: 50 Ω finish: Skydrol Resistant Enamel
width:  6.25 Inches Weight: 27.0Z
HEIGHT: 1.36 Inches Material: 6061 Aluminum Alloy / Thermoset Plastic
selector BEAMWIDTH: Direct Mode: -8 dB min. Connector:  TNC Female (4)
sidelobe: Direct Mode: 80° min. Temperature: -55°C (-67°F ) to +85°C (+185°F )
power handling: 1000 Watts Peak @ 1% Duty Cycle Gain: Direct Mode: 3.6 dB 1/4 wave monopole, Omni Mode: -1 ± 1 dB, 1/4 wave monopole
Part Number: Description:
S72-1735-24 TCAS Antenna



S72-1735-24
- TCAS Antenna
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
