Part #: S72-1746

NSN:

5985-01-687-5715

OEM:

Sensor Systems

Desc:

Directional Antenna

Part Number :


S72-1746



FEATURES

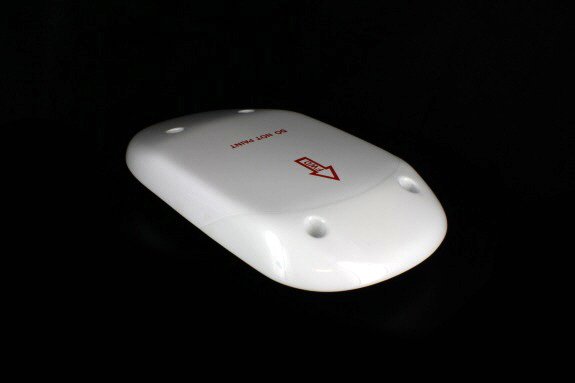

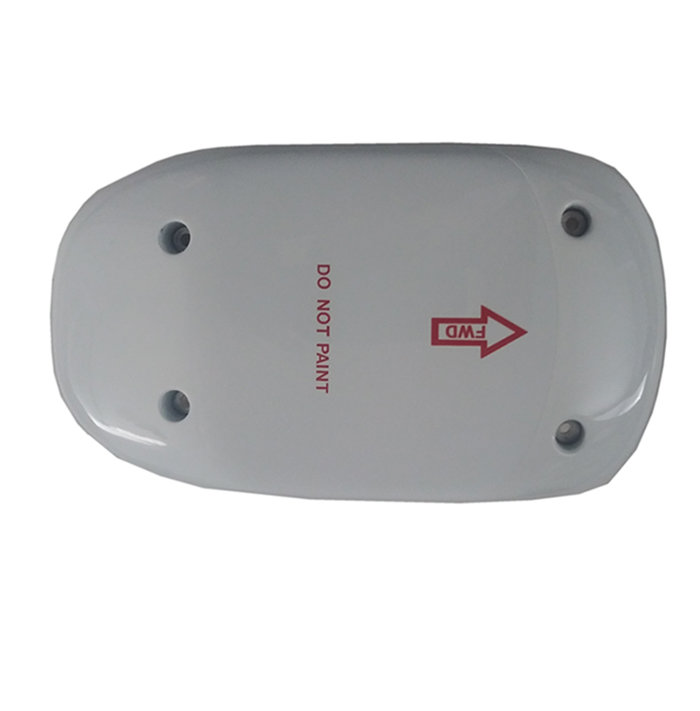

  • TCAS I Directional Antenna
  • Teardrop shaped

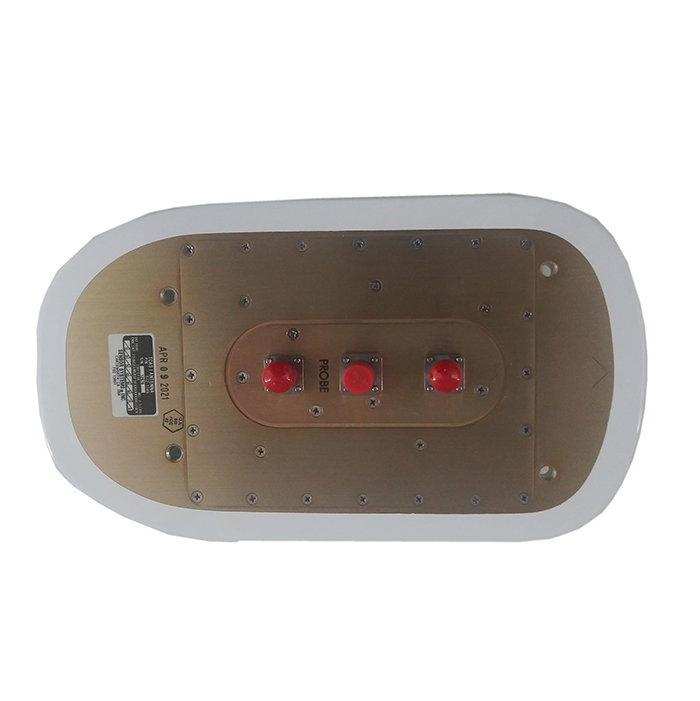

  • 2 TNC & 1 BNC Connector
  • Same as L3 Model: NY-164, P/N: 805-10890-001
  • Used in the SKY497 & SKY899 L3 Skywatch/Skywatch HP traffic alert systems
  • The S72-1746 can ONLY be used in the SKY899 system when set up as a TAS Installation, SKY899 TCAS I systems require the S72-1744 antenna
  • Sealed against environmental extremes
  • Are non-repairable
  • Must ensure a tight seal between the airframe & antenna
  • O-ring seal has been incorporated into the design to achieve a tight seal
  • To fit specific airframes, a special adapter plate is also required
  • Installation kits differ in the size of the airframe adapter plate, please confirm the install kit needed for your specific airframe



SPECIFICATIONS

Size: 11.12"D x 6.23"W x 1.3"H Weight: 2.3 lbs.
Speed: Rated to 600 knots (0.9 Mach) @ 25,000 feet Frequency: 1030-1090 MHz
Operating Altitude: 55,000 feet max TSO Compliance: FAA TSO C118
RTCA Compliance: DO-160C FA-AC(CLMY)XSFDFSXXXXXXXL(2A)X Finish: Gloss White (17925) or Black (37038), Per Fed Std 595A
Part Number: Description:
S72-1746 Directional Antenna, Identical to L3 P/N: 805-10890-001



Serial # 12773
Condition NEW
Mods -
Tag Date 03/25/22
Shop Sensor Systems
Warranty 1 Year
Serial # 12785
Condition NEW
Mods -
Tag Date 03/24/22
Shop Sensor Systems
Warranty 1 Year
S72-1746
- NY-164 TAS Antenna

NSN: 5985-01-687-5715

Price Condition Status
$2,695.00 NEW OUTRIGHT 2 IN STOCK
