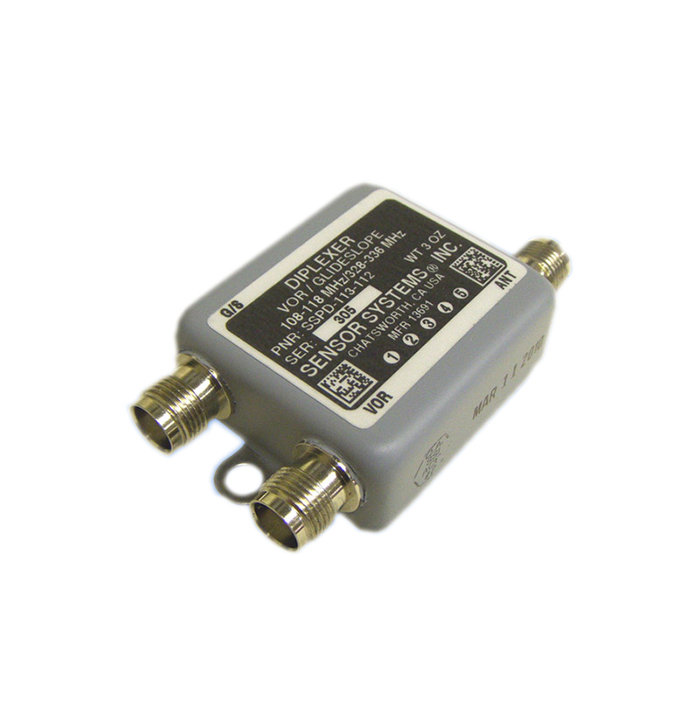

Picture of product SSPD-113-112
Part #: SSPD-113-112
Model: SSPD-113-112
Desc: Diplexer - VOR/LOC/Glideslope
OEM: Sensor Systems
ECCN: 7A994
Part Number :




SSPD-113-112



FEATURES

  • Diplexer operating at 108-118 MHz and 328-336 Mhz in order to split the signal from a single VOR/LOC/Glide Slope antenna into separate VOR/LOC and Glide Slope receivers
  • The diplexer can also be used when redundant VOR/LOC/GS receivers are utilized



SPECIFICATIONS

Frequency: 108-118 MHz, 328-336 MHz VSWR:   1.5:1 Max.
Power: Receive  insertion loss: 0.8 dB Max.
ISOLATION: 20 dB Min. IMPEDANCE: 50 Ohms
width:  1.75 in. Weight: 3 oz.
length: 2.40 in. Material: Steel
HEIGHT: 0.77 in. Connector: TNC Female (x3)
lightning protection: DC Grounded Temperature: -55°C (-67°F )to +115°C (+239°F )
Altitude: 70,000 ft. SHOCK: 15 ± 2 G's for 11 ± 1 ms Half-sine
finish: Skydrol Resistant Polyurethane Enamel



Part Number: Description:
SSPD-113-112 Diplexer - VOR/LOC/Glideslope



SSPD-113-112
- Diplexer - VOR/LOC/Glideslope
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
