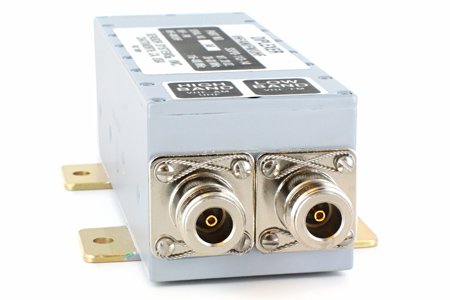

Part #: SSPD-113-14
Model: SSPD-113-14
Desc: Diplexer
OEM: Sensor Systems
NSN: 5985-01-208-3318
Sched-B: 8529906100
ECCN: 7A994
Cage Code: 13691
Part Number :


SSPD-113-14
FEATURES
  • Diplexer
  • Allows simultaneous operation of VHF/UHF communication frequencies through a single antenna to two radios: 30-88 MHz and 116-400 MHz
  • Isolation between frequency bands is 40 dB minimum
  • Hermetically sealed
  • Federal & Military Specs: MIL-E-5400



SPECIFICATIONS
Frequency: 30-88 MHz (VHF-FM) 116-400 MHz (VHF-AM/UHF) VSWR: 1.50:1
Inert Loss: 0.5 dB Isolation: 40 dB
EMI: MIL-I-6181 Power: 30 watts
Weight: 20 oz Height: 1.84"
Material: Skydrol-resistant enamel Connector/Port: TNC/ANT N/High Band N/Low Band
Temperature: -65°F to +160°F Altitude: 60000 ft
Vibration: 10 G's

 SSPD-113-14 Outline Drawing

Part NumberDiplexer Description:
SSPD-113-14 see details above



SSPD-113-14
- Diplexer

NSN: 5985-01-208-3318

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
