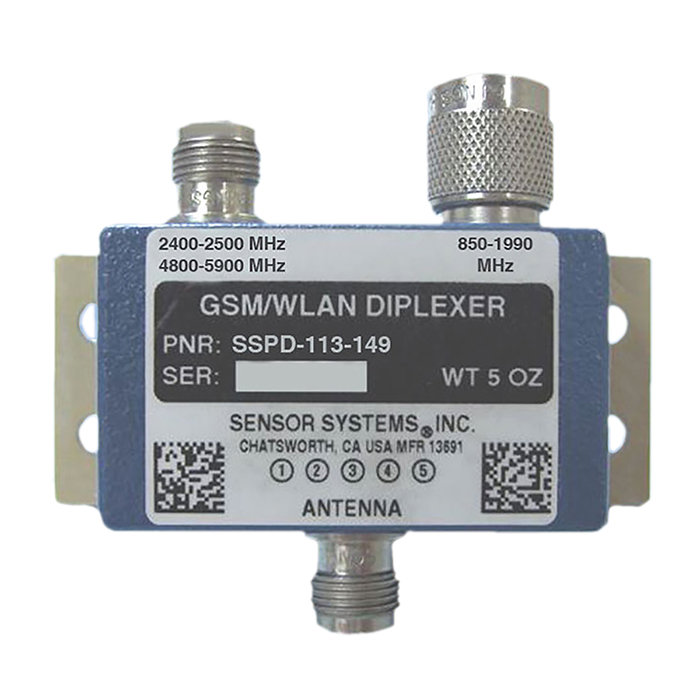

Picture of product SSPD-113-149
Part #: SSPD-113-149
Model: SSPD-113-149
Desc: Antenna Diplexer - GMS/WLAN
OEM: Sensor Systems
Part Number :


SSPD-113-149



FEATURES

  • Diplexer operates at 850 to 1990, 3400 to 2500, and 4800-5900 MHz
  • The Diplexer allows simultaneous use of a single antenna between GSM and wireless LAN type devices
  • Exhibits very low insertion loss and has excellent isolation between frequency bands
  • Can be paired with Sensor System’s telemetry and wireless antennas such as S65-5366-720
  • Hermetically sealed
  • Federal & Military Specs: IEEE 802.11 A/B/G/N, GSM (GLOBAL SYSTEM FOR MOBILE COMMUNICATIONS0, MIL-STD-810, MIL-HDBK-5400, MIL-E-5272





SPECIFICATIONS

Frequency: 850-1990 MHz, 2400-2500 MHz, 4800-5900 MHz VSWR:  ≤ 2.0:1
Gain: (Antenna) -1.0 aBic Min @ Zenith INSERTION LOSS: 1.0 dB Typical
Impedance: 50 ohms Power: 850-1990 MHz: 6 Watts Continuous Max, 2400-2500 MHz: 1 Watt Continuous Max, 4800-5900 MHz: 1 Watt Continuous Max
Lightning Protection:  DC Grounded Weight: 4 oz
shock: 15± 2 G's for 11 ± 1 ms Half-sine  Material: A-380 Aluminum Alloy
Finish: Blue paint per FED-STD 595 #25109 Connector: TNC Male (1) TNC Female (2)
axial ratio: ≤ 3.0 dB @ Zenith Temperature: -40° C(-40°F) to +85°C(+185°F)
Vibration: 9 G's Altitude: 55,000 ft.
height: 1.18 Inches Legnth: 3.25 Inches
width: 1.38 Inches



Part Number: Description:
SSPD-113-149 Antenna Diplexer - GMS/WLAN



X
X
X
SSPD-113-149
- Diplexer - GSM/WLAN
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
