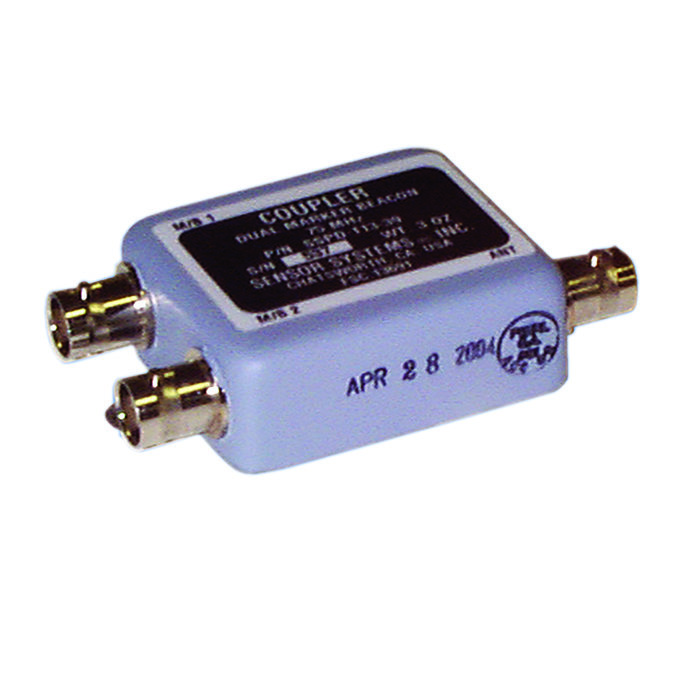

Picture of product SSPD-113-39

Part #: SSPD-113-39

NSN:

5895-01-607-9709

OEM:

Sensor Systems

Desc:

GPS Antenna Power Divider

Part Number :


SSPD-113-39
DESCRIPTION
SSPD-113-39: Equal-power divider for marker beacon applications.
The SSPD-113-39 Power Divider allows a single marker beacon antenna to be connected to two separate marker beacon receiver.
FEDERAL & MILITARY: RTCA/DO-160, MIL-STD-810




SPECIFICATIONS


Frequency: 75 MHz connector:  BNC Female (3)
vswr: 1.51:1 max. material: Tin-plated CR Steel
ISOLATION: 20.0 dB max. altitude: 55,000 ft.
INSERTION LOSS:  0.5 dB max. Weight: 3 oz.
Height: 0.75 in. vibration: 15 G's
finish: Skydrol Resistant Enamel temperature: -65°F to +185°F
SHOCK: 10 G's width: 1.75 in.





SSPD-113-39
- GPS Antenna Power Divider

NSN: 5895-01-607-9709
