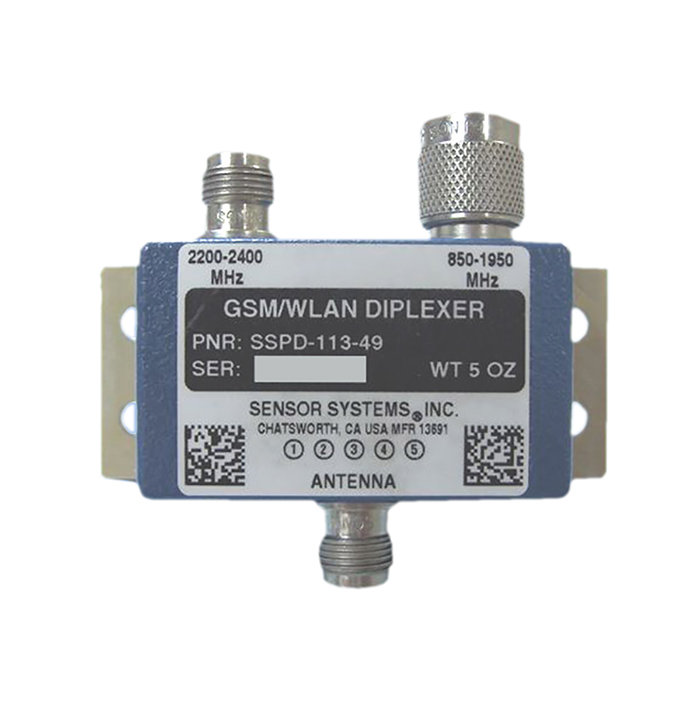

Picture of product SSPD-113-49
Part #: SSPD-113-49
Model: SSPD-113-49
Desc: Diplexer - GSM/WLAN
OEM: Sensor Systems
Part Number :




SSPD-113-49



FEATURES

  • Diplexer operates at 850 to 1990 MHz and 2400 to 2500 MHz
  • Simultaneous use of a single antenna between GSM and wireless LAN type devices
  • Diplexer exhibits very low insertion loss and has excellent isolation between frequency bands
  • Hermetically sealed. Can be paired with Sensor Systems telemetry and wireless antennas such as the S65-5366-715 and the S65-5366-716
  • FEDERAL & MILITARY SPECS: IEEE 802.11 b/ GSM (Global System for Mobile Communications), MIL-STD-810, MIL-HDBK-5400, MIL-E-5272



SPECIFICATIONS

Frequency: 850-1990 MHz, 2400-2500 MHz VSWR:  ≤ 1.8:1
Power: 850-1990 MHz: 6 Watts CW (Max.) 2400-2500 MHz: 1 Watt CW (Max.)  insertion loss: 1.0 dB typical
ISOLATION: 850-1990 MHz: > 20 dB, 1800-1990 MHz: >15.0 dB IMPEDANCE: 50 Ohms
width:  1.38 in. Weight: 4 oz.
length: 3.25 in. Material: 6061-T6 Aluminum Alloy
HEIGHT: 1.18 in. Connector: TNC Female (x2), TNC Male (x1)
Vibration: 9 G's  Temperature: -40°C (-40°F )to +85°C (+185°F )
Altitude: 70,000 ft. SHOCK: 15 ± 2 G's for 11 ± 1 ms Half-sine
finish: Blue paint per FED-STD 595 #25109



Part Number: Description:
SSPD-113-49 Diplexer - GSM/WLAN



SSPD-113-49
- Diplexer - GSM/WLAN
