| Part #: | 630502 |
|---|---|
| Model: | 630502 |

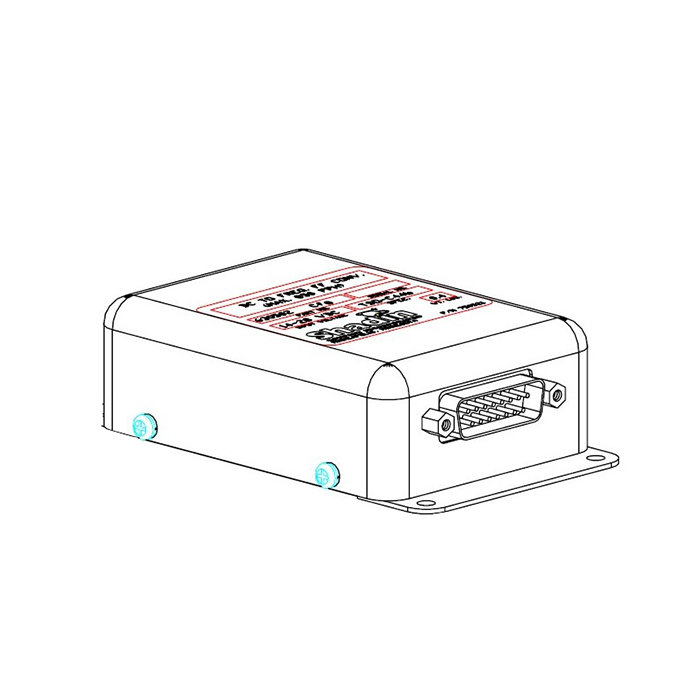

| Desc: | Referenced DC Fuel Flow Converter |
| OEM: | Shadin |
| NSN: | |
|---|---|
| Sched-B: | 8807100010 |
| ECCN: | 7A994 |
Select part number above to view pricing and availability.
| Price | Condition | Availability | Stock Info | |
|---|---|---|---|---|
| Price | Cond. | Avail. | Stock Info | |
| REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|
FEATURES
- DC to Frequency Converter
- Receives analog fuel flow signal in the form of a DC voltage and produces a digital output signal with a frequency proportional to the fuel flow signal
- Digital output represents the engine fuel flow and is available for use by a standard fuel management system
- Required if the receiving device uses a digital frequency signal input for fuel flow information and the fuel flow sensor or indicator provides an analog DC signal that represents Fuel Flow information
- Does not calculate an offset and it is necessary that the receiving device will correct for the offset, if the fuel system exhibits an offset.
- RTCA/DO-160C; TSO-C44b
| Weight: | 0.4 lbs | Size: | 2.40W x 4.30L x 1.15H (inches) |
| Operating Temperature: | -30° to +55° C | Power Supply Voltage: | +14 to +28 VDC |
| Operating Altitude : | -1,000 to 55,000 ft | Supply Current: | Supply Current: 70 mA at 28 VDC |
| Input Impedance: | >100 MΩ | DC Input Voltage Range: | 0-10 V |
| Environmental: | RTCA DO-160B C1CANMOXXXXXXBBABZZZ |
| Part Number: | Description: |
|---|---|
| 630502 | Referenced DC Fuel Flow Converter |
| Price | Condition | Status |
|---|---|---|
| REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
