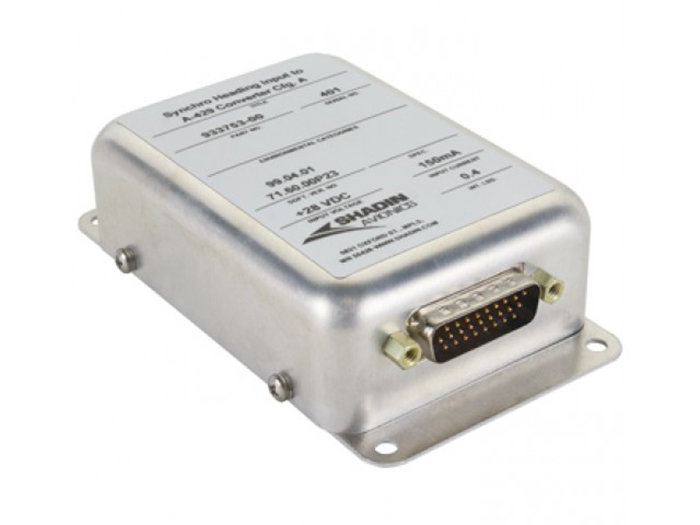

Picture of product 933753-00

Part #: 933753-00

NSN:

7050-01-546-1623

OEM:

Shadin

Desc:

Converter, Synchro/407 to ARINC-429 320

Part Number :


93375300





FEATURES

  • The converter accepts the Magnetic Heading (ARINC 407 3-wire Synchro Data Inputs)
  • Converts to A-429 low speed output label 320



SPECIFICATIONS

Weight: 0.4 lbs. DIMENSIONS: 1.15H x 4.30L x 2.40W
Temperature: Operating -55°C to +70°C, Storage C to +85°C Input VOLTAGE: +28VD
Altitude Range: Up to 55,000 ft. INPUT CURRENT: 50mA
Outputs: SSR automatic pressure altitude (gray) transmission code; RS-232 In-Flight loss of Cooling: Equipment can run indefinitely with no cooling.
Environmental: MIL-HDBK-217 MTBF- 69,780 hour output: ARINC 429 LS Data Magnetic Heading, Label 320
input data: Magnetic Heading, ARINC 407 3-wire Synchro (Reference 26VAC 400Hz Excitation 11.8V L-L) 1 Discrete Input: Synchro Valid



helps the GPS to maintain accurate 3-D position calculation
substitutes fourth satellite altitude reference.
Part Number: Description:
933753-00 Converter, Synchro/407 to ARINC-429 320



933753-00
- Converter, Synchro/407 to ARINC-429 320

NSN: 7050-01-546-1623

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
