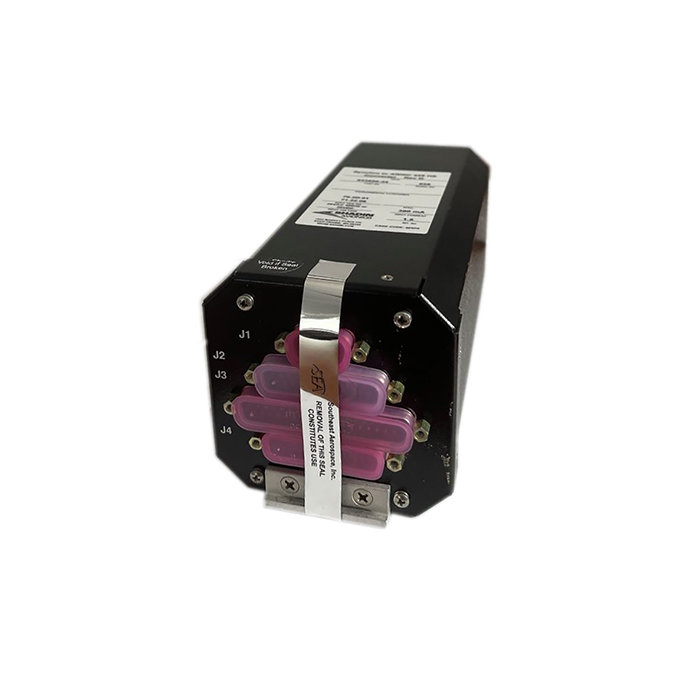

Picture of product 933800-24
Part #: 933800-24
Model: 933800-24
Desc: ARINC 407 to 429HS Converter
OEM: Shadin
NSN: 5841-01-670-2039
Sched-B: 8807100010
ECCN: 7A994
Cage Code: 0Z5P5
Part Number :

Image result for shadin avionics logo



FEATURES

  • ARINC 429 HS Converter is a general purpose converter, which can be used whenever Synchro to ARINC 429 High speed conversion is required
  • Output labels are: 320 (Magnetic Heading) 324 (Pitch) and 325 (Roll)
  • Receives 3 discreet flag inputs which are used to enable or disable the output of ARINC 429 labels associated with roll (325), pitch (324) and magnetic heading (320)
  • Contains a strapping input



SPECIFICATIONS

weight: 1.5 lbs Dimensions: 8.562 x 3.305 x 3.680 in
Power Supply Voltage: 14 to 28 VDC or 26 VAC 400 Hz  Mounting: Rack
Supply Current: 300 mA @ 28 VDC  Protection: Not internally fused
Magnetic Heading: ARINC 407 3-Wire Synchro Pitch: ARINC 407 3-Wire Synchro
Roll: ARINC 407 3-Wire Synchro Operating Temperature: -20°C to 55°C
Storage Temperature: -55°C to 85°C Operating Altitude: Up to 55,000 ft
In-flight loss of cooling: Equipment can run indefinitely with no cooling



Part Number: Description:
933800-24 ARINC 407 to 429HS Converter















Serial # 658
Condition SV
Mods None
Tag Date 04/08/24
Shop Shadin LP
Warranty 6 Months
933800-24
- ARINC 407 to 429HS Converter

NSN: 5841-01-670-2039

Price Condition Status
$5,750.00 SV OUTRIGHT 1 IN STOCK
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
