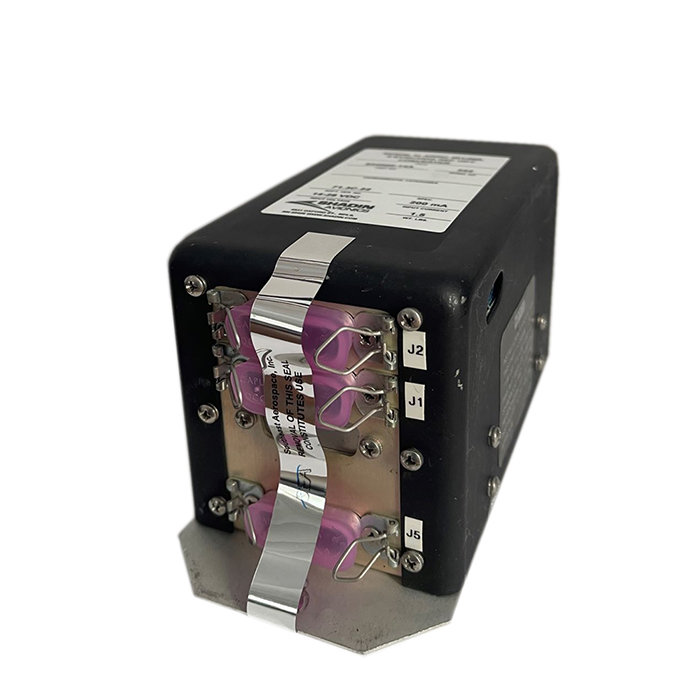

Picture of product 934000-14A
Part #: 934000-14A
Model: 934000-14A
Desc: Data Converter
OEM: Shadin
NSN: 6605-01-459-3507
Sched-B: 8807100010
ECCN: 7A994
Cage Code: 0Z5P5
Part Number :

Image result for shadin avionics logo







FEATURES
  • Serial to ARINC-561/568, 2 Sync/Hdg Ref Opt Converter
  • Receives serial data from a GPS receiver and from an aircraft heading source through the Synchro to Serial Converter Shadin P/N 937600
  • Serial input data is converted to ARINC 561/568 data to drive the distance to display on an HSI.
  • Inputs: RS-232/422 Navigational Interface 1200/9600 baud, 8 bits, no parity, 1 stop bit, “ABCD” Format; Magnetic Heading (Synchro to Serial)
  • Outputs: ARINC 561 / 568
  • 2 Synchro Data Outputs: Desired Track ARINC 407 3-wire Synchro, Bearing to Waypoint ARINC 407 3-wire Synchro
  • Rack Mounted




SPECIFICATIONS

Dimensions: 3.39H” x 6.28”L x 3.04”W Weight: 1.5 lbs
Voltage: +14 to +28 VDC Supply Current: 200 mA
Excitation Ref: 26Vac 400Hz Protection: Not internally fused
Operating Temperature: -20° to +55° C Storage Temperature: -55o to +85o C
Operating Altitude: Up to 50,000 ft





Part Number: Description:
934000-14a Data Converter




Serial # 093
Condition SV
Mods 1-4
Tag Date 04/09/25
Shop Shadin LP
Warranty 6 Months
934000-14A
- Serial to ARINC 561 / 568 / 2 Synchro / Heading Re

NSN: 6605-01-459-3507

Price Condition Status
$5,500.00 SV OUTRIGHT 1 IN STOCK
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
