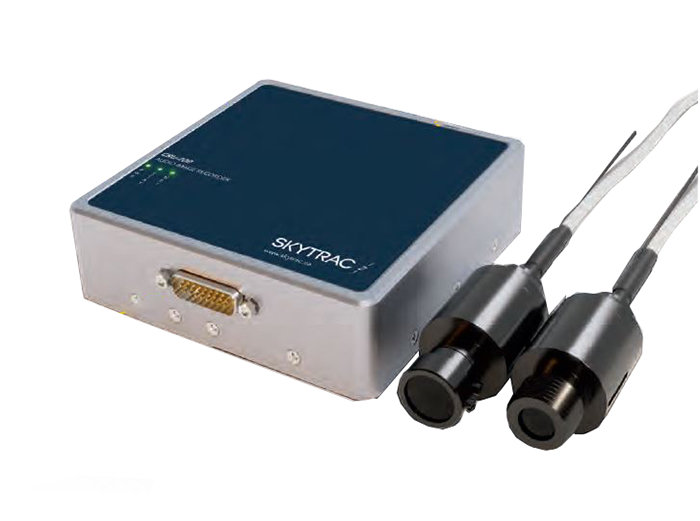

Picture of product CRU-200

Part #: CRU-200

OEM:

SkyTrac

Desc:

Audio/Image Recorder

Part Number :


CRU-200



FEATURES

  • Lightweight, internally mounted audio & image recorder
  • Suitable for low light and glare conditions
  • Provides 8 hours of recording at 1080p, 15 fps
  • Rugged design for withstanding vibration, shock and temperature fluctions
  • Fully compatible with the SKYTRAC ISAT-200A data acquisition unit
  • Comes with one or more flush-mounted image sensors
  • Discretely captures maximum field of view



SPECIFICATIONS
Enviromental CONDITIONS: Operating:-30°C to +55°C (-22°F to 131°F), Operating Humidity: 10-85% RH (non-condensing), Storage: -40°C to 65°C (-40 °F to 149°F)
STORAGE: Two 128 GB memory cards
approvals: DO-160G approval
casing: Aluminum
audio input/output: External microphone or line input
audio compression: AAC-LC 8/16 kHz, 8-64 kbits/s, G.711 PCM 8 kHz 64 kbits/s, G.711 PCM 8 kHz 128 kbits/s, G.726 ADPCM 8 kHz 32 kbits/s or 24 kbits/s,
power : DC Power: 8-32 VDC, max 13.33W, Power Over Ethernet (PoE): IEEE 802.3af/802.3at Type 1 Class 3, max 12.95W
CONNECTORS: 26-pin HD DSUB connector for: 2 camera sensor inputs, 2-audio inputs, 8-32V DC power, Ethernet/PoE
WEIGHT: CRU-200: 1.2 lbs max, Installation Connector and Back Shell: 0.17 LBS max, Installation Bracket (MEC0155): 0.21 lbs max
dimension (+/-0.05") W/out mating installation connector: 4.8" (W)x 4.9" (L)x 1.47" (H), W/mating installation connector: 4.8" (W)x 6.7" (L)x 1.47" (H), W/mating installation connector and bracket: 4.8" (W)x 7.2" (L)x1.53"(H)
image settings: Compression, Color, Brightness, Sharpness, Contrast, White balance, Exposure value, Exposure value, Exposure control, Exposure zones, Local contrast, Rotation, Corridor format, Text and Image overlay, Privacy mask, Mirror of images
frame rate: In 1080 with no WDR: 12.5/15 fps (50/60 Hz), In 720p with no WDR: 25/30 fps (50/60 Hz), In 720p with WDR: 12.5/15 fps (50/60 Hz)
resolution: 1920x1080 (1080p) to 480x270, 1280x720 to 480x270
video compression: H.264 (MPEG-4 part 10/AVC) Baseline, Main and High Profiles Motion JPEG



Part Number: Description:
cru-200 Audio/Image Recorder



CRU-200
- Audio/Image Recorder
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
