Part #: SR00925DE

Model: SR00925DE

OEM:

Southeast Aerospace

Desc:

STC Right to Use

Part Number :


STC #SR00925DE


FEATURES

PLEASE NOTE: This P/N listing is for the STC Right to Use Only and does not include components. For additional information, and to inquire about the full STC package, please Contact SEA at sales@seaerospace.com or call 321-255-9877

  • AML STC for installing ADS-B Out System (with optional ADS-B In functionality) using Garmin GTX 335R and GTX 345R Transponders and a Qualified GPS with WAAS into eligible Part 29 rotorcraft - View Approved Model List

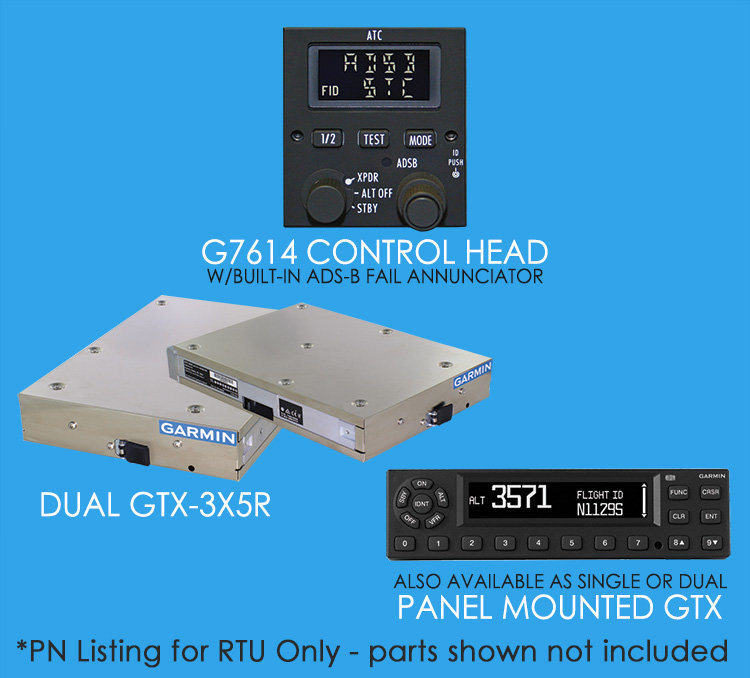

  • SEA’s STC #SR00925DE provides the approval for the removal of the existing transponder (XPDR) system and the installation of the Garmin GTX-345R and GTX-335R (with or without internal GPS) and the Gables G-7534-100X (black or grey) or the G7614-50X (black or grey) into the aircraft listed within the AML
  • Aircraft with the ability to install the panel mounted version GTX have this option instead of the remote mounted system; if an existing GTN is installed, the Gables CTL is not required as the GTN will control the GTX units
  • STC includes the option of the Flightstream 110 for ADS-B In data from the GTX-345R if required
  • STC does not cover any structural mounting of the antenna or the GTX-3X5R; additional approval may be required for structural installation
  • STC Includes DGAC Mexico Validation, and TCCA Canada Approval
  • STC RTU (right to use) available for purchase by authorized Garmin Dealers Only, or Contact SEA for availability of STC installation at our Melbourne, FL facility



SR00925DE
- STC Right to Use
Price Condition Status
$7,500.00 NEW OUTRIGHT RFQ
