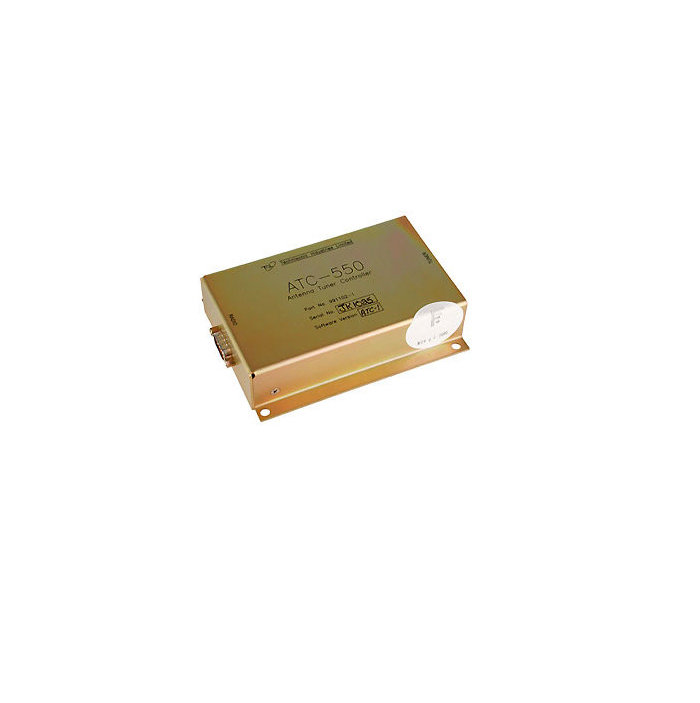

Picture of product ATC-550

Part #: 991102-1

Model: ATC-550

OEM:

Technisonic

Desc:

Antenna Tuner Controller

Part Number :



ATC-550


FEATURES
  • The ATC-550 Antenna Tunner Controller has two RS-232 serial ports on 9 pin D connector
  • One port is connected to the TFM-550 transceiver for the frequency and transmit control information while the other port can be connected to the RC-550 slave control head if required
  • Power and ground is applied to the connector
  • The 9 pin D connector supplies the control information to the antenna tunner as well as the 28 volt power



SPECIFICATIONS

weight: 7.9 oz (224 g) dimensions: 5.2" x 3.9" x 1.25"
data bits: 8 stop bits: 1
parity BITS: None voltage: 28.0 VDC, ± 15%
CURRENT: 35 mA,  135 mA max with Antenna Tunner connected operating temperature: -45°C to +70°C
Part Number: Description:
991102-1 Antenna Tuner Controller , ATC-550





991102-1
- Antenna Tuner Controller
