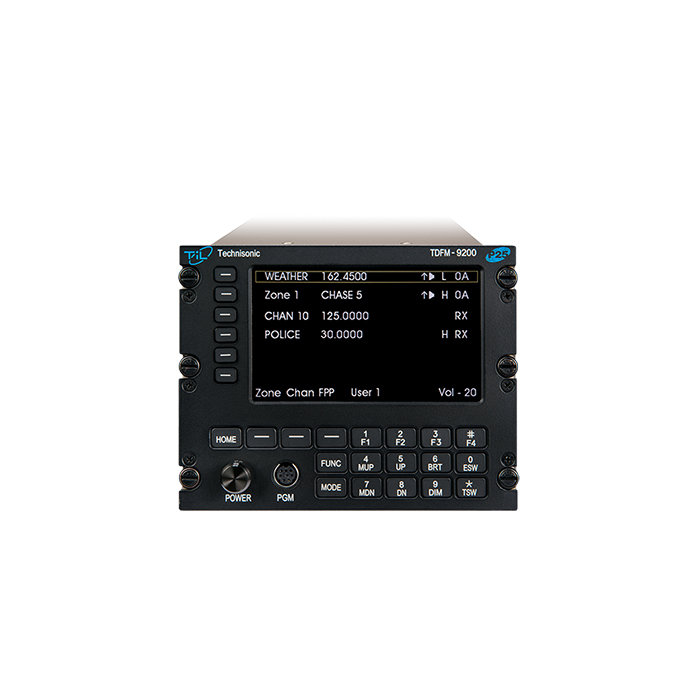

Picture of product TDFM-9200

Part #:

Model: TDFM-9200

OEM:

Technisonic

Desc:

Multi-Band Airborne Transceiver

Part Number :


TDFM-9200
FEATURES
  • TDFM-9200 multi-band, airborne transceiver supports digital and conventional analog
  • Operates in one or two P25 (Phase I and Phase II) compliant FM All-Band modules and one or two AM or FM analog modules
  • The P25 bands supported by the TDFM-9200 include VHF (136 to 174 MHz), UHF (380-520MHz); as well as 7/800 MHz (764 to 870 MHz)
  • Analog modules supported by the TDFM-9200 are single band only and include: VHF/FM Lo band (30 to 50 MHz),VHF/AM Aeronautical Band (118 to 135 MHz),UHF/AM Military Band (225 to 400 MHz)
  • The new All-Band P25 module can support analog/digital operation on the full FM Band spectrum (VHF, UHF, and 7/800) or can be configured to support operation on any mix of all three bands, two bands, or on any single band.
  • The TDFM-9200 can support up to two (2) All-Band P25 modules in all the available configurations, two (2) analog modules.
  • Optional P25 Phase 1 (FDMA) and Phase 2 (TDMA) Trunking is also available.
  • Radio modules can be individually configured to include any P25 options such as trunking, encryption, OTAR, etc.
  • Optional Encryption protocols: AES, DES-OFB, DES-XL, DVP, DVP-XL.
  • Standard ADP Encryption
  • Available Multiple Encryption Keys: 64 Common Key Reference (CKR) or 16 Physical Identifier Reference (PID) keys.
  • Each radio module can store 3000 channels and can be programmed to operate in digital or analog mode on a channel-by-channel basis.
  • Each radio module independently supports SCAN across its entire frequency spectrum.
  • Built-in audio switching allows multiple RF modules in either combined or separate transceiver configurations.
  • New User 1, User 2 operator configuration
  • Supports simulcast and cross-band repeat
  • Dimensions: 4.5” (H), 5.75” (W) and 8.5” (D)
  • TDFM-9200 Installation Instructions


SPECIFICATIONS

Dimensions: Approx. (L) 8.0" x (W) 5.75" x (H) 4.5" Weight: 7.0 Lbs (3.2 Kg)
Operating Temperature: 30° C to +60° C VOLTAGE: 28.0 VDC ± 15%
Altitude range: -1,500 ft to 55,000 feet CURRENT: 500 mA minimum / 7.5A maximum
audio output power: (including sidetone) 65 mW into 600Ωmicro Microphone Inputs: Carbon or Equivalent
Panel Back Lighting: Voltage-28 or 5 Volts AC or DC (selectable), Current- 100 mA  RF Output Power: 1 or 6 Watts (VHF), 1 or 5 Watts (UHF), 1 or 2.5 Watts (764 – 806), 1 or 3 Watts (806 – 870)
VHF Band: 136 to 174 MHz UHF LO Band: 380 to 470 MHz
UHF HI Band: 450 to 520 MHz UHF Band: 380 to 520 MHz
700 / 800 Bands: 764 to 870 MHz FM Hum and noise in dB (wideband): VHF  -48 , UHF -45, 800 -45
Audio Distortion: VHF 1%, UHF 1.0%, 800  1.0% Frequency Stability in ppm: VHF ± 1.0, UHF  ± 1.0, 800 ± 1.5
Modulation Limiting: Wide band ± 5 kHz, Narrow band ± 2.5 kHz









Part Number: Description:
121271-2-92-A50-T5-T4-P92527 Multi-Band Airborne Transceiver



121271-2-92-A50-T5-T4-P92527
- Multi-Band Airborne Transceiver
