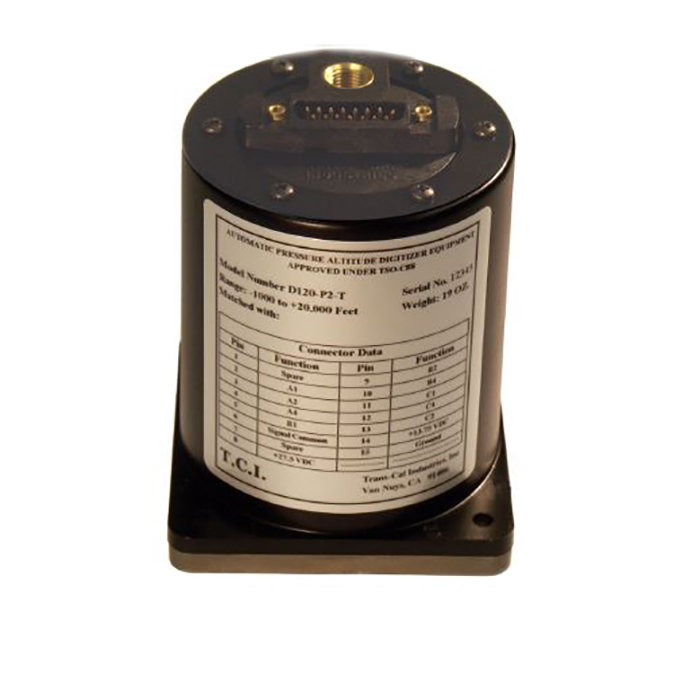

Part #: | D120-P2-T (35K) |
---|---|
Model: | D120-P2-T (35K) |
Desc: | Altitude Encoder (35K ft.) |
OEM: | Trans-Cal |
NSN: | |
---|---|
Sched-B: | 9014206000 |
ECCN: | 7A994 |
Price | Condition | Status | More Info | |
---|---|---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|
FEATURES
Dimensions: | 4.11"H x 3.25"W x 3.25"L | Weight: | 19 oz. |
Power Requirements: | 10-15 or 22-30 Volts DC | Pressure Datum: | Reference to 29.92 in Hg. Absolute (1013.25 milibars) |
Operating Temperature: | -30 degrees C to +50 degrees C | Storage Temperature: | (Non-operating) -65 degrees C to +70 degrees C |
Altitude: | Will not be adversely affected when subjected to a pressure rance equivalent to -1200 feet to +35000 feet. | Accuracy: | Is matched within +/-125 feet of the primary flight altimeter |
Humidity: | 0 to 95% relative humidity at +32 degrees C | Vibration: | 5 to 50 cps: .020 double amplitude 1.5 Gs max, 50 to 500 cps: 1.5 Gs max. |
Operating Range: | 1000 feet up to +35,000 feet | Pressure Datum: | the digitized information is referenced to 29.92 in Hg. Absolute (1013.25 millibars) |
Input Power: | Pin 14 10-15 VDC at 120 ma. Max, Pin 8 22-30 VDC at 150 ma.Max, Pin 15 Ground | Dielectric strength: | 200 VAC, 60Hz for 1 minute |
Insulation resistance: | 200 VDC, 10 megohms minimum output | Output logic levels: | Logic “1” 2.5 VDC to VCC max, Logic “0” 0.0 to 0.7 VDC |
Output circuitry: | Compatible with TTL (fanout of 2) DTL,, ECL, MOS and CMOS logic systems | Illumination source: | Gallium arsenide (GaAs) solid state light emitting diodes |
Part Number: | description: |
---|---|
D120-P2-T (20K) | -1000 up to +20000 feet |
D120-P2-T (25K) | -1000 up to +25000 feet |
D120-P2-T (30K) | -1000 up to +30000 feet |
D120-P2-T (35K) | -1000 up to +35000 feet |
Price | Condition | Status |
---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
