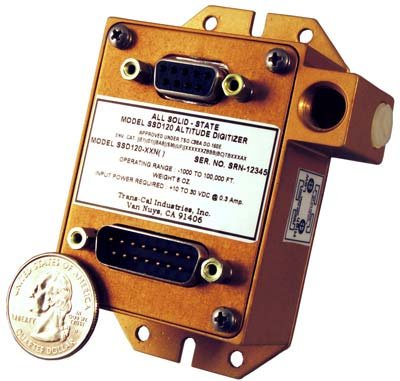

Picture of product SSD12030NRS1

Part #: SSD120-30N-RS1

Model: SSD12030NRS1




Solid State Encoder (30K ft, 1 ft Res.)

Part Number :

SSD120-(XX)N-RS1 the Nano
  • Solid State Altitude Encoder
  • Smallest & Lightest Altitude Encoder Currently Available
  • 42 Months Manufacture Direct Replacement Warranty
  • Average MTBF: 9.7+ years.
  • Pin for Pin replacement for Most Other Manufacturers Encoders
  • Optional: Available with two independent RS232 serial data ports selectable message protocols for most popular avionics interfaces. Programmable for 100' and 10' resolutions.
  • Optional: Available with adapter plates that will allow the installer to mount the unit in another manufacturers mounting tray.


Weight: 5.9 oz. Operating Altitude: -1000' to +30,000' (Available in altitudes from 30,000' up to 100,000')
Operating Voltage:  14 or 28 VCD Operating Current: 0.270 Amps
Operating Temperature: -20° to +70°C  Warm-up Time: No Warm-up Time: +20°C to +70°C, -20°C to +20°C 30 seconds
Accuracy: ± 50' from -1000' to +30,000'
Part NumberSolid State Altitude Encoder Description:
SSD120-30N  Up to 30,000 Feet
SSD120-30NE  Up to 30,000 Feet, Hi Temp
SSD120-35N  Up to 35,000 Feet
SSD120-35NE  Up to 35,000 Feet, Hi Temp
SSD120-42N  Up to 42,000 Feet
SSD120-42NE  Up to 42,000 Feet, Hi Temp
SSD120-50N   Up to 50,000 Feet
SSD120-50NE  Up to 50,000 Feet, Hi Temp
SSD120-62N   Up to 62,000 Feet
SSD120-62NE  Up to 62,000 Feet, Hi Temp
SSD120-65N   Up to 65,000 Feet
SSD120-65NE   Up to 65,000 Feet, Hi Temp
SSD120-80N   Up to 80,000 Feet
SSD120-80NE   Up to 80,000 Feet, Hi Temp
SSD120-100N   Up to 100,000 Feet
SSD120-100NE   Up to 100,000 Feet, Hi Temp
SSD120-30N-RS232      Up to 30,000 Feet, w/RS232 Port
SSD120-35N-RS232   Up to 35,000 Feet, w/RS232 Port
SSD120-42N-RS232   Up to 42,000 Feet, w/RS232 Port
SSD120-30N-RS   Up to 30,000 Feet, w/RS232, RS422/485 & 10 Feet Resolution
SSD120-35N-RS   Up to 35,000 Feet, w/RS232, RS422/485 & 10 Feet Resolution
SSD120-42N-RS   Up to 42,000 Feet, w/RS232, RS422/485 & 10 Feet Resolution
SSD120-30N-RS1   Up to 30,000 Feet, w/RS232, RS422/485 & 1 Foot Resolution
SSD120-35E-RS1   Up to 35,000 Feet, w/RS232, RS422/485 & 1 Foot Resolution
SSD120-42N-RS1   Up to 42,000 Feet, w/RS232, RS422/485 & 1 Foot Resolution


- Solid State Encoder (30K ft, 1 ft Res.)
Price Condition Status

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com

In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
