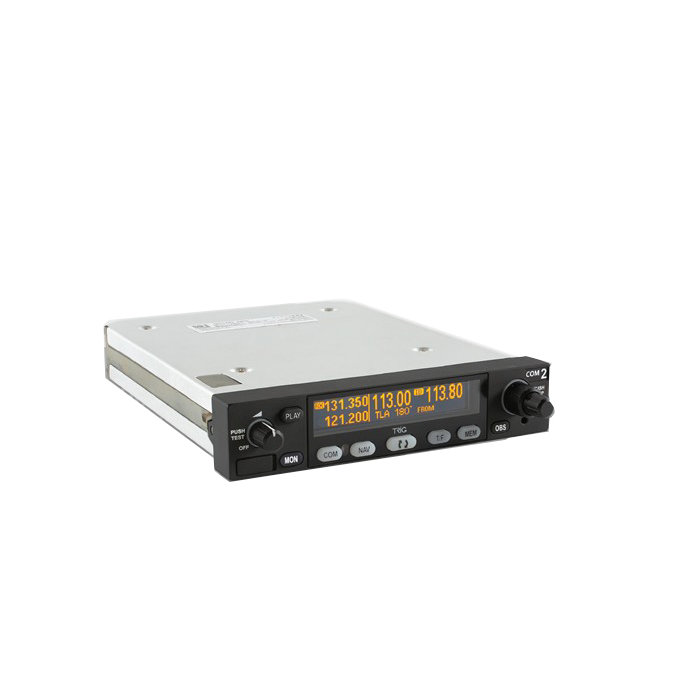

Part #: 01955-00-01

Model: TX56A

OEM:

Trig Avionics

Desc:

Nav/Comm Radio

Part Number :
trig manufacturer logo

TX56A



FEATURES

  • Slimline – only 33mm high
  • Bright, clear display / simple user interface
  • Unique ‘Push Step’ for faster tuning
  • Dual Watch – monitor two com or two nav frequencies at the same time
  • Stereo music / two place intercom
  • ‘Say Again’ feature – allows playback of last transmission
  • USB port on facia – upload over 200 com and nav frequency database (CSV file)
  • VOR/ILS receiver – monitor a 2nd VOR
  • Built in VOR/LOC converter
  • Built in digital CDI
  • Built in 40 channel glideslope receiver
  • Highly efficient – no cooling fans or external cooling required
  • Ideal retro-fit for legacy radios – unit is same height as an SL30
  • Two year worldwide warranty
  • ETSO / TSO approved
  • Comprehensive FAA STC is available



SPECIFICATIONS

type: Certified 25 kHz COMPLIANCE: ED-23C, ED-67, DO-186B, DO-178B Level B, DO-160G, DO-254 Level C
CERTIFICATION: ETSO 2C128, 2C169a, 2C34f, ETSO 2C36f, 2C40c TSO-C128a, C169a, C34e, TSO-C36e, C40c TYPICAL current consumption in receive mode: at 14V – 265 mA
product Panel Dimensions: H 1.3" x W 6.26" x L 10.63" nominal Transmitter power: 10 W
operating Temperature: -20°C to +55°C Supply voltage (dc): 11 -33 V
wieght: 2.42lbs Cooling requirement: No fan required
Front Panel Dimensions: H 1.3" x W 6.26"
Part Number NAV/COM Description:
01955-00-01 See description above



Serial # 00379
Condition NEW
Mods -
Tag Date 10/06/22
Shop Trig Avionics Limited
Warranty 1 Year
01955-00-01
- Nav/Comm (25KHz, 760ch., 10W, 11-33V)
Price Condition Status
$4,458.00 NEW OUTRIGHT 1 IN STOCK
