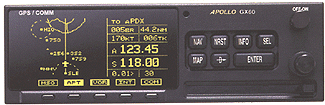

Picture of product GX-60

Part #: 435-4009-600

Model: GX-60

OEM:

UPS Aviation

Desc:

IFR GPS / Comm

Part Number :


GX60
FEATURES
  • IFR GPS / Communications Radio
  • Simple "Direct-To" navigation
  • Built-In simulator for trip planning and training
  • Nearest waypoint search, includs airports, VOR's, NDB's, intersections and user waypoints
  • Datacard database for easy user update and replacement
  • Remote waypoint search
  • 30 flight plans with 20 legs each
  • 500 user-defined waypoints created by Lat/Lon or by radial/distance from a reference waypoint
  • Special Use Airspace, loss of navigation, and arrival at waypoint alerts
  • Map Displays include full screen map, split screen map with distance, speed, bearing, track, crosstracj error, "TO" waypoint, and zom level, Smart key, I-button map declutter, Track up, desired track up, an magnetic north up options Runway diagrams and runway names displayed 5nm ATC rings around airports with control towers Airspaces displayed by sector or outer boundry
  • Parallel track offset.
  • Minimum Safe Altitude and Enroute Safe Altitude
  • Navigation displays include Lat/Lon to 0.01 minute, bearing and distance to waypoint, ground speed and track angle, desired track and distance between waypoints, cross track error with numeric and graphic CDI, display of the "TO" waypoint ident, ETE and ETA to the "TO" and destination waypoints
  • Automatic waypoint sequencing
  • User definable navigation pages with auto sequncing
  • Real time clock and countdown timer
  • Auto/manual magnetic variation settings
  • 760 comm channels (frequency range of 118.000 to 136.975 MHz)
  • Active and standby frequency display
  • Transmit status indicator
  • Stuck mic time-out
  • Frequency monitor function - listen to standby frequency while monitoring active frequency for any activity
  • Built-in intercom function
  • Frequency memory and recall functions from navigation database, eight last used, and eight user stored
  • Two microphone inputs
  • 12 watt audio amplifier



SPECIFICATIONS
Input Voltage: 10 VDC to 40 VDC, reverse polarity protected GPS Input Power: 7 watts typical
Comm Input Power: 3.7 watts typical receive 28 watts typical transmit Height: 2.00 inches
Width: 6.25 inches Depth: 11.125 inches
Weight: 3.1 lb Operating Temperature: -20C to +55C
Maximum Altitude: 35,000 ft Number of Channels: 8
Frequency: 1575.42 MHz L1, C/A code Sensitivity (acquisition): -135dBm
Sensitivity (drop lock): -142dBm Dynamic Range: >20 dB
Lat/Lon position accuracy: 15 meters RMS typical 25 meters, SEP, without SA 100 meters 2DRMS with SA Velocity: 1000 knots maximum
Acceleration: 4G maximum Time to First Fix: 25 seconds typical
Reacquisition: 2.5 seconds typical Position Update Interval: 1 second typical
Datum: WGS-84 Comm Output Power: 8 watts minimum carrier at > 12VDC input 6 watts minimum carrier at 10VDC input
GPS Approvals: TSO C129a Class A1 Comm Approvals: TSO C37d transmit TSO C38d receive TSO C128 Stuck mic



435-4009-600
- IFR GPS / Comm
Price Condition Status
$3,750.00 NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

Newly Overhauled parts obtained from Garmin are designated with an N in their part number. This usually follows the 010- in the part number. As with most Garmin 010 part numbers, the N part numbers are for ordering purposes only and do not actually appear on the dataplate of the unit.
