Part #: 071-01545-0200

Model: KA-91

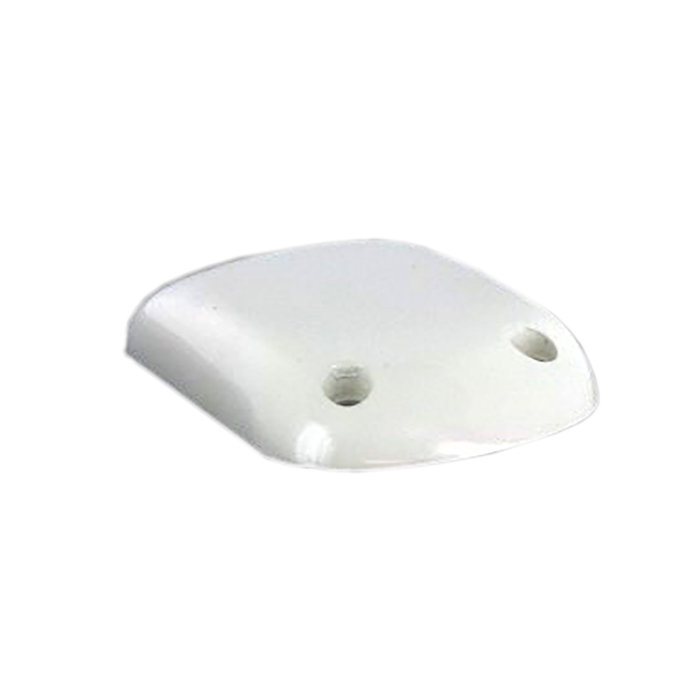

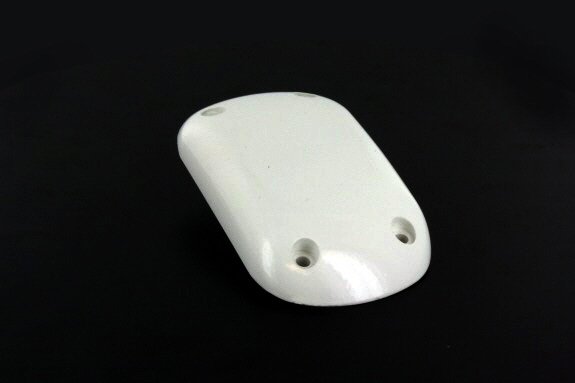

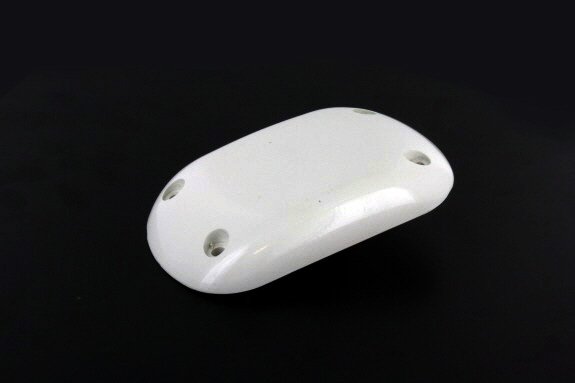

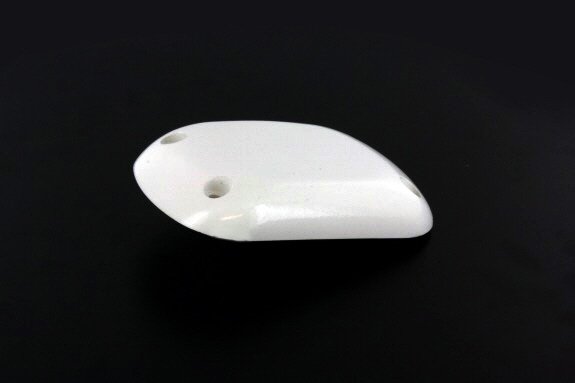

BendixKing - GPS Antenna
360
360
360
product 360 image
360
product image
Part Number :


KA-92
FEATURES
  • Active GPS Antenna commonly used with Bendix/King line of GPS Receivers such as KLN-89B, KLN-90B, KLN-94, KLX-135A
  • TSOd and Non TSOd versions originally produced (see table below)
  • Mounted on top of fuselage at least 3 ft. away from VHF antennas
  • Mounting antenna near propeller and T-tail of aircraft should be avoided
  • Mounts with 4 each #10-32 screws
  • Click Here to view mounting pattern
  • No longer in production; can be replaced by Comant CI401-220
See Replacement Document from Honeywell
SPECIFICATIONS
Dimensions: .75"H x 2.90"W x 4.70"L Weight: .5 lbs.
TSO: C129 Airspeed Rating: 600 knots TAS
Output Impedance: 50 ohms nominal DC Voltage: 5 volts +- 0.5 volts
DC Current: 50 ma max. Gain and Noise: 26.5 dB and 2.3 db
Part Number GPS Antenna Description:
071-01545-0100 Non-TSOd version
071-01545-0200 TSOd version



Serial # 13929
Condition SVC
Mods -
Tag Date 08/13/20
Shop Southeast Aerospace Inc.
Serial # 10295
Condition SVC
Mods None
Tag Date 03/09/20
Shop Southeast Aerospace Inc.
071-01545-0200
- GPS Antenna
Price Condition Status
$295.00 SV OUTRIGHT STOCK
