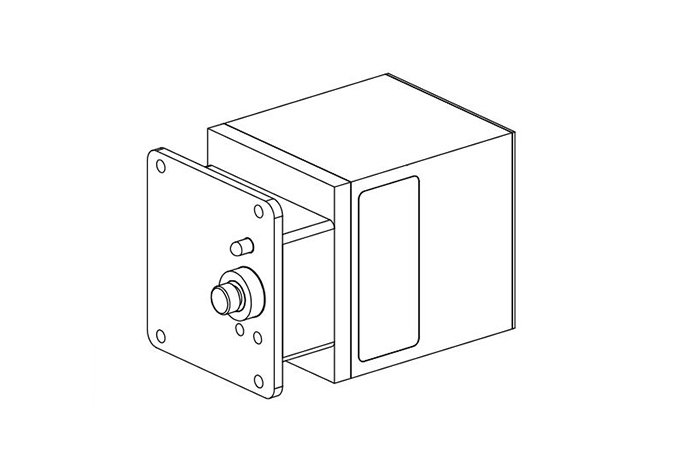

Picture of product SVO-5000

Part #: 822-2136-001

Model: SVO-5000

OEM:

Collins Aerospace

Desc:

Servo, Low Torque

Part Number :



SVO-5000



FEATURES

  • Primary aileron and elevator servo used in Collins Proline 21 Automatic Flight Control System (AFCS)
  • Provide electromechnical interface to pitch and roll primary flight controls
  • Drives servos which interface with the aircraft control column and wheel
  • Dual servo commands and instructions are provided to the servo in ARINC 429 format
  • Consists of brushless motor, motor drive electronics, gear train, engage clutch, power supplies, dual transceivers, dual controllers, redundant sensors, and redundant monitors
  • EMI and lightning protection
  • Motor is 2-phase, 4-pole brushless motor specifically designed for fail passive autopilot applications



SPECIFICATIONS

POWER: 17.1 W nominal / 154.0 W max tso: C9cSoftware: DO-178B Level A
environmental: DO-160E[(A2)(F2)X]ABB[(SLM)(REE1)(HP)][E2]SFXXSA[BZ]AZ[CN][KE]M[(A3)(J4)3]XBAX dimensions: 3.75” H x 3.56” W x 7.01” L
weight: 1.63 kg / 3.6 lbs.
Part Number: Description:
822-2136-001 Servo, Low Torque





822-2136-001
- Low Torque Servo
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
