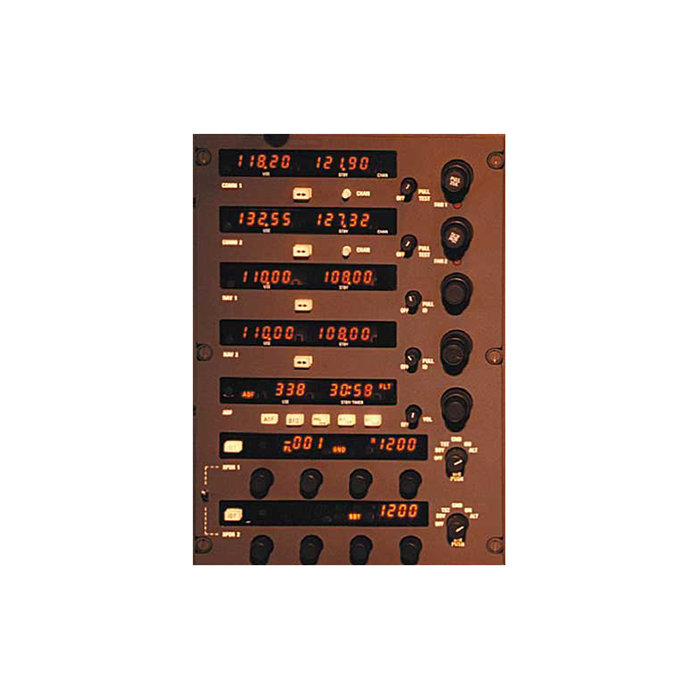

Picture of product CNI-5000

Part #: CNI-5000

OEM:

Honeywell

Desc:

Integrated Radio Mounting Package

Part Number :





CNI 5000

FEATURES

  • Integrated Radio Mounting Package
  • Seven radios are used to form a functional CNI-5000 radio package (linked via faceplate), consisting of 2 Comms, 2 Navs, 2 Transponders & 1 ADF radio
  • The specific radio components are as follows:
    • (2) KY-196A, P/N 064-01054-0050 or (2) KY-196B, P/N 064-01084-0201
    • (2) KN-53, P/N 066-01067-0004
    • (1) KR-87, P/N 066-01072-0006
    • (2) KT-70, P/N 066-01141-1101 or (2) KT-71, P/N 066-01141-6101
    • For more information on the CNI-5000 Integrated Radio Mounting Package, see individual radio details



SPECIFICATIONS
Weight: 23.30 lbs (w/radios installed) Width: 7.1" (w/bezel)
Height: 10.1" (w/bezel) Length: 13.263" (w/bezel)
Documents: TSO-C112, TSO-C40a, TSO-C34c, TSO-C36c, TSO-C37c, TSO-C38c, TSO-C41c, TSO-C74c, RTCA DO-160B  Temperature: A1 -15° to +55°C D1 -20° to +55°C
Altitude Range: A1 15,000 ft D1 50,000 ft Cooling: 2 integral fans plus remote forced-air cooling required
Rack Fans: 220 mA Front Panel Lamps: 2.0 A max
Part Number: description:
050-03011-00XX Rack & Installation Kit, includes: Rack Assembly PN 200-05197-0000, Rear Cover Assembly PN 200-05155-0000, Fan Sense PC Board Assembly PN 200-08519-0000
050-03104-00XX Front Panel, includes: Front Panel Assembly PN 200-05140-00XX, Light Board Assembly 200-08486-0000



CNI-5000
- Integrated Radio Mounting Package
