D2-729B003

Ducommun -
No Image Available

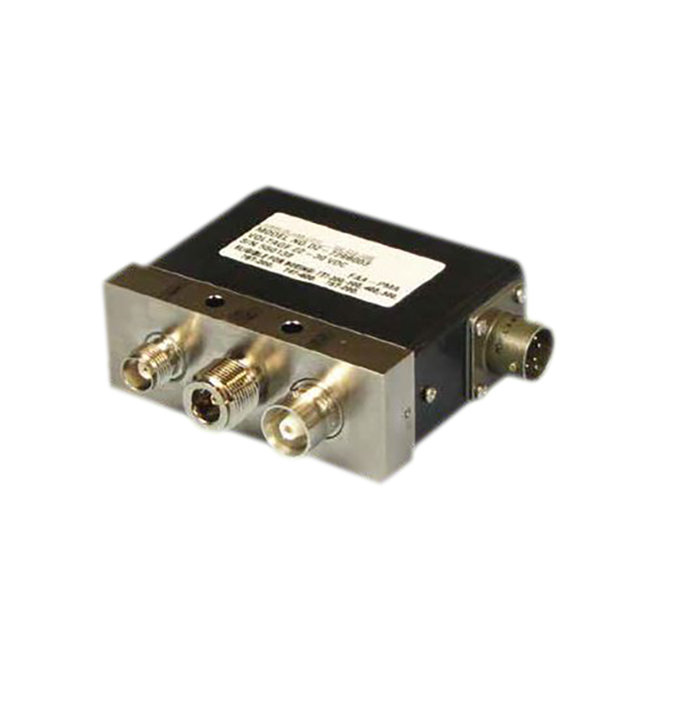

Part Number :


D2-729B003
FEATURES
  • Traffic Collision Alerting System (TCAS) Switch
  • Switch high frequency RF signals between the top and bottom fuselage mounted antennas and numbers 1 & 2 system transponders
  • Is directly applicable to all TCAS systems, such as Honeywell & Rockwell Collins
  • FMA PMA Certified Switches for TCAS & ADS-B Applications
  • Air Agency Certification No.: D5YR708X
  • Additional microwave switch applications - SATCOM and GPS Applications



SPECIFICATIONS
Contact Arrangement: SPDT Operating Frequency: DC to 2 GHz
V.S.W.R.: 1.3:1 Insertion Loss (max): 0.25 dB
Isolation (min): 60 dB Actuating Voltage: 22-30 Vdc (28 Vdc nominal)
Actuating Current: 400 mA max @ 28 Vdc & 20° C Impedance: 50 Ohms
Switching Time: 35 mS max RF Power Handling: 200 WCW
Operating Mode: Failsafe w/indicators Operating Life:  1,000,000 cycles
Current of Ground Port B & C: 5 mA (max) Weight: 11.5 oz
Connectors: P1 > TNC (F) per MIL-C-39012 P2 > N (F) per MIL-C-39012 P3 > C (F) per MIL-C-39012



D2-729B003
- Coaxial Switch (TCAS)
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No
