GTN-650 010-00813-50

Garmin - WAAS GPS/Nav/Com - Touchscreen

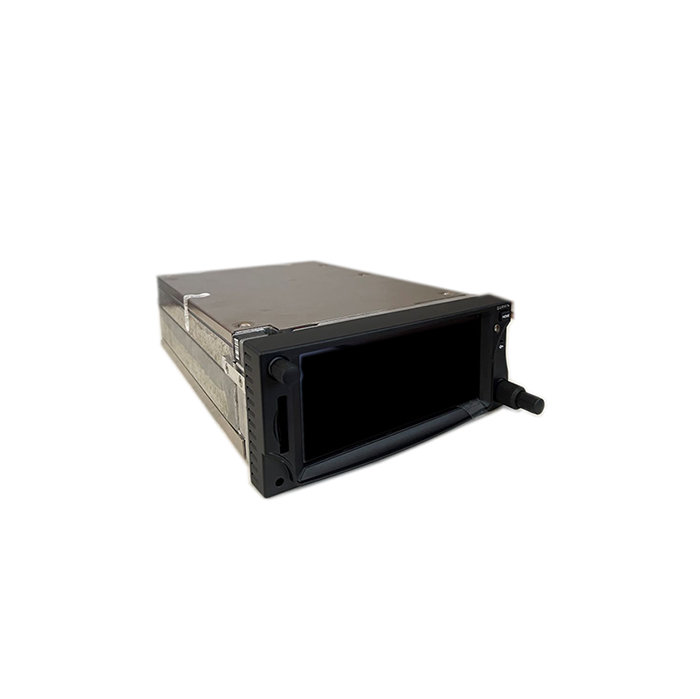

product image
Part Number :
Garmin Logo

GTN 650
FEATURES
  • Touchscreen WAAS GPS/COMM/NAV with Multifunction Display capabilities
  • Menu-driven graphical interface on color LCD touchscreen display
  • 4.9" diagonal high-resolution TFT display
  • On screen alphanumeric entry options
  • Designed with raised grips in the bezel and a shelf across the lower edge that serve as gripping points during flight conditions
  • Feature-rich MFD capabilities: moving map, airways, approaches & more
  • High resolution terrain mapping - including topography features, cities, airports, terminal areas, SUAs and more
  • Visual approaches, with lateral and vertical guidance
  • Ability to control the GTX-3000 transponder for TCAS II aircraft (note: this is not a TCAS II certified display)
  • Support for forwarding GTX attitude through the Flight Stream 510 to portable devices
  • GPS TSO'd to C146c, authorized for Class 1, 2, 3 (LPV)
  • GPS WAAS-certified to Gamma-3 approach capability
  • WAAS-corrected GPS signal accuracy to 1 M RMS
  • Built-in GPS/ILS/VOR/LOC and glideslope capabilities available
  • Graphical flight planning (including airway navigation)
  • Edit your entire route on the map screen and easily enter new or modify existing waypoints
  • VHF COMM transceiver: 8.33 or 25 kHz channel spacing
  • Recent & favorite user frequencies are easily accessed
  • Holding down the volume knob will automatically dial in the emergency frequency
  • Com transmit power: 10W standard, 16W optional
  • Extensive optional interface capabilities: lightning, weather, traffic, TAWS-B terrain alerting, and more
  • Integrated control/display for remote transponder
  • Flight control system interface for select autopilots
  • Optional XM WX satellite weather and XM Radio
  • SafeTaxi airport diagrams
  • OPTIONAL - coupled with GDL-69 series datalink receiver - overlay NEXRAD radar right onto your moving map display and receive satellite music
  • Features a front-loading SD card reader - easily update your databases
  • The 16 Watt COM Enablement Card, Garmin P/N 010-00878-04, is to be used on 28 VDC aircraft only

OPTIONAL Class A TAWS, ADS-B Out software upgrade available at additional cost, P/N: 010-00878-05
Click Here to view a detailed comparison of the GTN-650 vs. GNS-430W

SPECIFICATIONS
Dimensions: 6.25"W x 2.65"H x 11.25"D Display Size: 4.46"W x 1.98"H
Display Resolution: 600 x 266 pixels Display Type: Color TFT LCD; sunlight readable
Weight: 7.0 lb Voltage Range: 11-33
Built-in VHF Comm:  Yes  Transmit Power: 10 watts min, 16 wast min (optional)
Built-in VOR/LOC/GS: Yes Receiver:  15 channel; TSO-C146c
IFR or VFR: IFR Basemap:  Yes
US Terrain & Obstacle Database: Yes Nav Database:  Yes
Types of Jeppesen Data: Full & Non-Precision approaches, DPs and STARs, Victor/Jet Airways Nav Database Coverage Area:  Americas, International or Worldwide
Waypoints/ Favorites/ Locations: 1000 Flight Plans:  99 reversible; up to 100 waypoints each
Fly WAAS Approaches: Yes Moving Map:  Yes
Front-Loading Datacards: Yes. XM WX Weather & Radio for US & Canada Compatible:  Yes
TIS Alerting Compatible: Yes. Class B TAWs Alerting Compatible:  Yes
Additional: Eligible for PilotPak Databases
Part Number Digital Voltmeter Description:
010-00813-50 Black receiver w/rack, backplate, conn kit, config module & product info kit
011-02256-00 Black receiver, 11-33 VDC
011-02256-50 Grey receiver, 11-33 VDC



010-00813-50
- WAAS GPS/Nav/Com - Touchscreen
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT CALL OR RFQ

SEA Repair Capabilities: No

010-00813-A0
- Helicopter GTN 650 Black
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT CALL OR RFQ

SEA Repair Capabilities: No

010-01059-A0
- Touchscreen GPS Nav/Comm NVG Heli
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT IN STOCK

SEA Repair Capabilities: No

011-02256-00
- WAAS GPS/Nav/Comm
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

011-02256-50
- WAAS GPS/Nav/Comm (Gray)
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com

Newly Overhauled parts obtained from Garmin are designated with an N in their part number. This usually follows the 010- in the part number. As with most Garmin 010 part numbers, the N part numbers are for ordering purposes only and do not actually appear on the dataplate of the unit.

The GTN 650 is a replacement for the GNS-430W. You can compare the two units here

This error message can result from a number of issues. Below is a list of the most common:

  • The SD card may be write protected. When write protected, data cannot be written to the SD  card. On the SD card there is a small locking mechanism that can slide up and down. To be unlocked, the locking tab should be closer to the metal contacts on the SD card. Furthermore, the process of inserting the SD  card into your Garmin device and/or SD card programmer may move the locking tab out of place.
  • The card programmer cannot read or write to a high capacity card. Some card programmers cannot handle high capacity SD cards without a software download or driver update.
  • There is an error or bad data region on the SD card. Perform an error checking scan of the card through Windows to correct the errors.

The glide path that is generated is based on the information that is used for the Localizer Performance with Vertical guidance (LPV) and Lateral Navigation / Vertical Navigation (LNAV/VNAV) procedures. It uses a specified decent angle that is centered at the MAWP (Missed Approach Waypoint) and at the TCH (Threshold Crossing Height). If this information is included in the electronic database for the approach, the 400W/500W series, G1000 with WAAS, and GTN-600/700 series will generate a glide slope.
