Part #:

Model: RT-3002

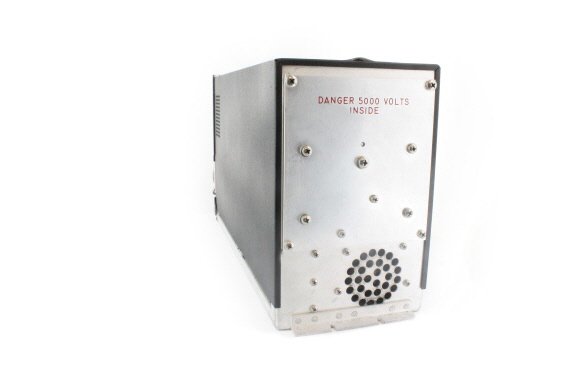

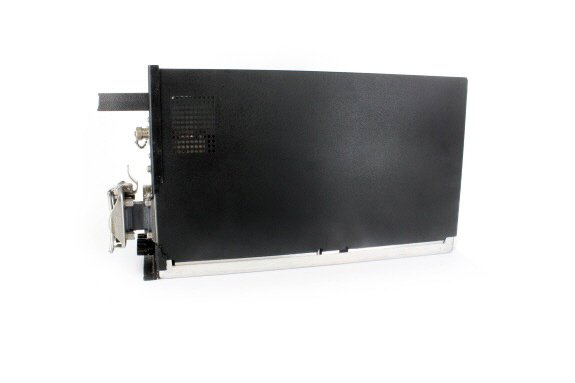

Honeywell - Radar Transceiver
Part Number :
Honeywell Logo

RT-3002
FEATURES
  • Radar receiver/transmitter used in Primus 300SL Radar System
  • Housed in short 1/2-ATR case
  • 8kw peak nominal power output

NOTE: RT-3001 is only used with the DI-3003 standard size color indicator RT-3002 is only used with the DI-2007 slimline color indicator

SPECIFICATIONS
Dimensions: 5.06"W x 8.12"H x 14.4"D Weight: 13.3
TSO: Category D2AJXXXXXXBBBBB, Class 7 Operating Frequency: X-Band, 9375 +-30 MHz
Part NumberRadar R/T Description:
MI-585222-1 see details above



3713878-502
- Receiver Transmitter
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

MI-585222-1
- Radar Transceiver
Price Condition Delivery
CALL OR RFQ SV OUTRIGHT RFQ
CALL OR RFQ SV EXCHANGE RFQ

SEA Repair Capabilities: Yes

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com

Weather radar transceivers use a magnetron which is basically a cathode emission device. The magnetron is subject to deteriorization due to aging. Therefore, it is recommended to perform some type of periodic maintenance to detect and correct the effects of aging. This reduces the chance of an in-service failure.

An annual, routine test of the following parameters should made:

- Power output
- Transmitter frequency
- AFC voltage
- Sensitivity (MDS)

Ideally, the test should take place between December and March prior to the peak thunderstorm season.
Southeast Aerospace exchanges are based on the return of an undamaged, economically repairable core unit with identical part number as the unit shipped to the customer. An "economically repairable" core is defined as one where the cost to repair/overhaul (or Repair Cap) does not exceed 80% of the original SV/OH exchange price billed. Should the Repair Cap exceed 80%, the customer will be billed the additional amount. In the event this amount exceeds the Outright Price for the unit, the customer would only be billed the difference between the Outright Price and SV/OH Exchange Price with the core returned as-is to the customer.

Here is an example of such a transaction:

$1000 Exchange Price charged to customer
$1000 x .8 = $800 Maximum Allowable core repair charge or Repair Cap

$2000 Cost to repair core unit
- $800 Less Core repair cap
---------
$1200 Additional billing amount.

2200.00 Total Cost of transaction

Please Note:
SEA offers exchange on new items as well. However, repair cap as indicated above is still based on SV/OH exchange price.
As of January 2010, the only Multi Function Displays that are compatible with the Primus 300 or Primus 400 radar systems are the Honeywell MFRD and the Universal MFD-640. For pricing and additional information on these MFDs, please submit an RFQ to SEA today.

Negotiating the exchange price of a unit only limits the allowable repair cap for the core unit. Southeast Aerospace's exchange transactions are based on the return of economically repairable core unit. Once the core is received and evaluated, the core repair cost incurred by SEA cannot exceed 80% of the original exchange price. That is, it cannot cost SEA more than 80% of the original OH/SV exchange price collected from the customer. Therefore, when and if an SEA exchange price is discounted, there is a risk that additional charges may be assessed once the core is returned and evaluated.

For more information, please refer to these other Exchange FAQs
