Picture of product EDM-800

Part #: EGT-701-6C-O-A-T-F-R/M

Model: EDM-800

OEM:

J.P. Instruments

Desc:

Engine Monitoring System

Part Number :


EDM-800
FEATURES
  • Digital and Analog EGT/CHT Scanner with Horsepower Percentage display
  • Available for 4 or 6 cylinder aircraft engines (i.e. EDM-800-4C, EDM-800-6C)
  • Similiar to EDM-700 but includes Fuel Flow as standard function
  • Primary replacement instrument for CHT and Oil Temperature
  • Percentage of Horse Power
  • Turbine Inlet Temperature
  • Complete fuel flow system with transducer
  • LeanFind mode - automatically identifies first and last cylinder to peak
  • PeakFind automatically captures the EGT peak value
  • High Speed EGT/CHT probes
  • RPM with sensor
  • Manifold pressure sensor
  • Outside Air Temp (OAT)
  • All functions checked four times a second for real alarm conditions
  • 39 Programmable alarms
  • Long term memory adjustable from 25 to 550 hours
  • Data Memory records all 29 functions every 6 seconds for up to 25 hours or every minute for 550 hours; downloadable to computer
  • Overlean function
  • Interfaces to GPS's for display of gallons required to next waypoint or destination
  • TSO'd
  • 3 year factory warranty
  • Dimensions: 2 1/4" instrument round x 7.5" deep
  • Optional functions include Oil Temp, 2 Turbine Inlet Temp, CDT, IAT
  • All systems include probes and harnesses with indicators

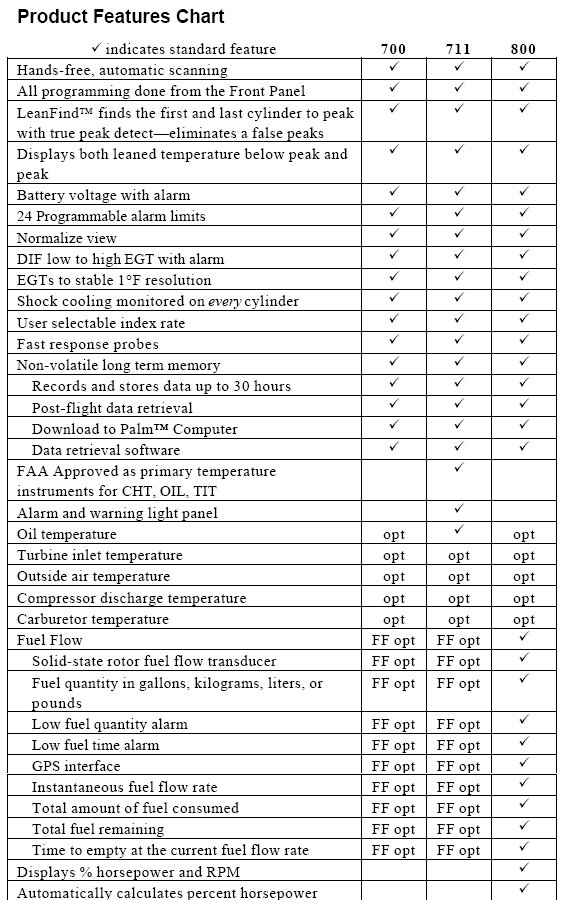

* CLICK Here to view a summary chart of the EDM-700/711/800 features and options



EGT-701-6C-O-A-T-F-R/M
- Tempature Indicator
Price Condition Status
REQUEST AR OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

"As Removed" or condition "AR" parts are in the same condition as they were removed from an aircraft. The reasons for removal include aircraft upgrades, teardowns, or certain types of incidents. In most cases, AR parts have not been inspected or tested. They do not include airworthiness certification such as FAA Form 8130 or EASA Form 1. Southeast Aerospace encourages avionics in this condition to be tested and recertified before using in an aircraft.
