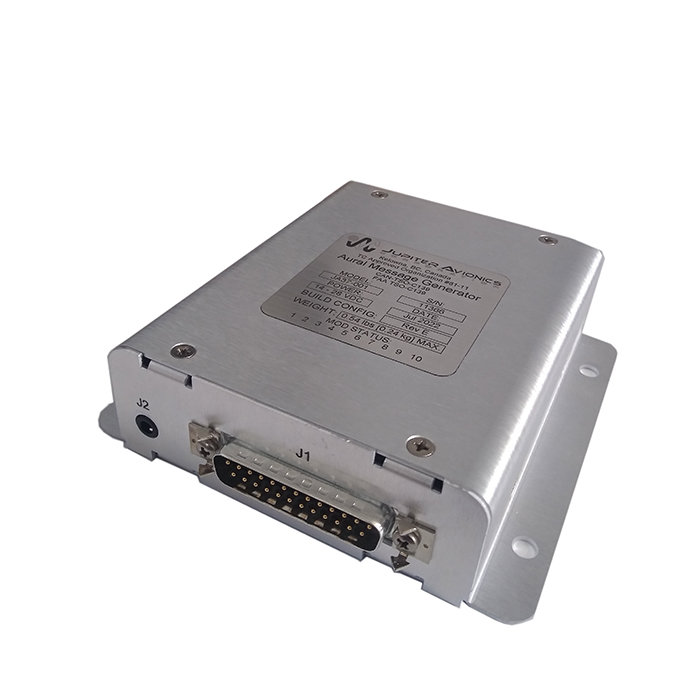

Picture of product JA37

Part #: JA37-001

Model: JA37

OEM:

Jupiter Avionics

Part Number :





JA37





FEATURES

  • Field configurable settings
  • Voltage or ground seeking trigger inputs
  • Two trigger inputs per message
  • Each message configured as “one-shot” or repeating continually
  • Messages play simultaneously or sequentially (if prioritized)
  • Two balanced outputs
  • Tone or voice message library available
  • 2 RX Audio inputs for mixing withmessages
  • Message mute input
  • Available in 3 or 6 channel, Extended Length, Analog Input versions





SPECIFICATIONS

Weight: 0.54 lbs. [0.24 kg] Max.
Operational Temperature: -40 °C to +70 °C
Shock: 20g (any axsis)
Survival Temperature: -55 °C to +85 °C
Humidity: 95%, 48 hrs
Altitude: 50,000 ft. max
Installation kit: INST-JA37 (Qty 2 for JA37-201 & JA37-202
TSO Compliance: Altitude:

JA37-001: TC CAN-TSO C139, JA37-002: TC CAN-TSO C139 Pending, JA37-201: Contact JAC for TSO Status,

JA37-202: Contact JAC for TSO Status



Part Number MESSAGE GENERATOR description:
Ja37-001 Aural Message Generator - 3 Channel
JA37-002 Aural Extended Length Message Generator - 3 Channel
JA37-201 Aural Message Generator - 6 Channel
JA37-202 Aural Extended Length Message Generator - 6 Channel
JA37-300 Aural Message Generator - 3 Channel - Analog Input
JA37-600 Aural Message Generator - 6 Channel - Analog Input





JA37-001
- Aural Message Generator
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
JA37-002
- Aural Message Generator
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
JA37-201
- Aural Message Generator
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
JA37-300
- Aural Message Generator
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
JA37-600
- Aural Message Generator
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
