Part #: 062-00142-0200

Model: KFM-985

OEM:

BendixKing

Desc:

VHF/UHF FM Airborne Comm Transceiver

Part Number :

FOR REFERENCE ONLY

Bendix King logo

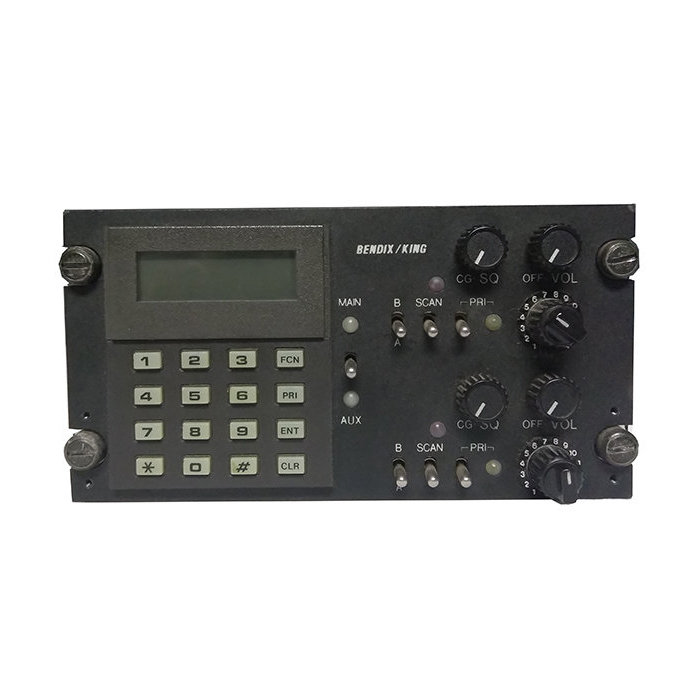

KFM-985



*** NOTE:  THIS PRODUCT IS OBSOLETE, PLEASE CONTACT US FOR SUGGESTED ALTERNATIVES ***



FEATURES

  • Panel mounted, integrated radio providing separate VHF and UHF units into one unit
  • Dual-transceiver that can be configured in combinations covering 148-174 MHz, 403-457 MHz or 450-512 MHz bands
  • Compatible with aircraft audio systems and headsets
  • Self-contained in a three inch high, standard Dzus-width unit
  • LCD Display
  • 14 VDC voltage; KA-39 needed to install in 28V aircraft



SPECIFICATIONS

Size: 5.75"W x 3.0"H x 5.32"L Weight: 1.97 lbs.
Part Number VHF/UHF FM Comm Transceiver Description
062-00142-0100 14VDC, VHF/UHF, 30/30 kHz spacing, 148-174 MHz
062-00142-0200 14VDC, VHF/UHF, 30/25 kHz spacing, 148-174 MHz & 450-512 MHz
062-00142-0300 14VDC, VHF/UHF, 25/30 kHz spacing, 450-512 MHz & 148-174 MHz
062-00142-0400 14VDC, VHF/UHF, 25 kHz spacing, 450-512 MHz
062-00142-0500 14VDC, UHF/D-UHF, 25/25 kHz spacing, 450-512 MHz & 407-457 MHz
062-00142-0600 14VDC, D-UHF/UHF, 25/25 kHz spacing, 407-457 MHz & 450-512 MHz
062-00142-0700 14VDC, D-UHF/D-UHF, 25 kHz spacing, 407-457 MHz
062-00142-0800 14VDC, VHF/D-UHF, 30/25 kHz spacing, 148-174 MHz & 407-457 MHz
062-00142-0900 14VDC, D-UHF/VHF, 25/30 kHz spacing, 407-457 MHz & 148-174 MHz



Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com

Many operators of the KFM-985 only utilized the 138-174 MHz frequency ranges. Therefore, if only these frequencies are desired, then Southeast Aerospace recommends the TFM-138B from Technisonic. If the dual bands of 138-174 and 403-512 MHz are desired, then Southeast Aerospace recommends the TFM-500 from Technisonic.


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
