KG-258

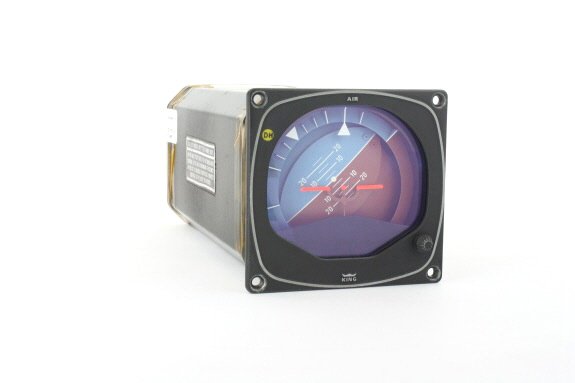

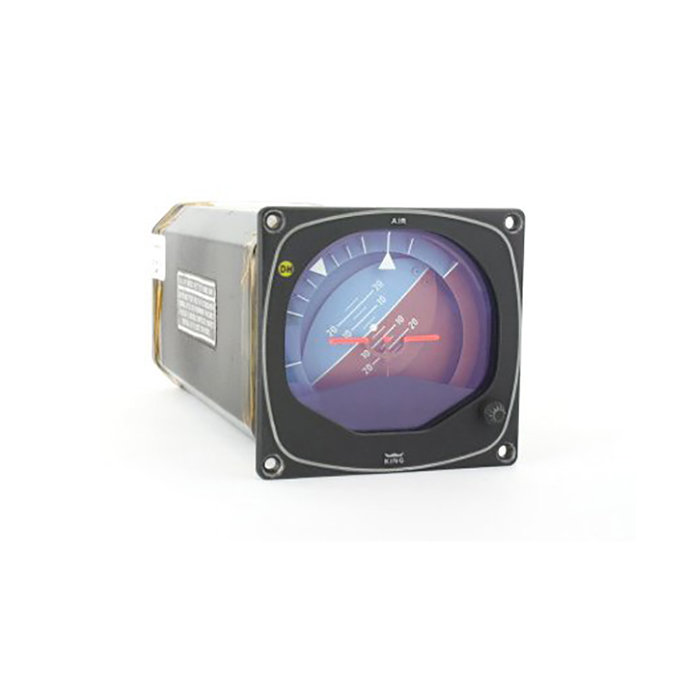

BendixKing - Horizon Gyro (0 deg. tilt)
Part Number :


KG-258
FEATURES
  • Panel mounted horizon gyro
  • Internal lighting
  • Contains an air-driven attitude reference indicator
  • Houses the attitude gyro and presents a pictorial display of the aircraft pitch and roll attitudes
  • Displays DH (decision height) annunciation when used with a radar altimeter
  • Versions available with 0° or 8° tilt
  • Used in KFC-200 Autopilot System
SPECIFICATIONS
Size: 3.55" x 3.37" x 7.31" max Weight: 3.1 lbs
Mounting: Front panel mounted with four #6 Flat Head screws Mating Connector:

KPN 030-1010-00 Hood KPN 030-2002-00 Connector Receiver KPN 030-1008-00 Lever & Pivot Assembly

TSO Compliance: C4c DO-138 Compliance: DA/KM/AAAXXXXXX
Power Inputs:  +14VDC/0.16AMP max or +28VDC/0.08AMP max (lighting) 10VAC, 430Hz with .2 amp max Signal Input: Power and Ground for DH light +14 or +28 Volt
Signal Output: Attitude Reference Signals for the KC-295 Flight Computer: 50mV AC/Degrees, Roll and Pitch
Part NumberHorizon Gyro Description:
060-0020-01 0° tilt w/Roll & Pitch
060-0020-02 8° tilt w/Roll & Pitch
060-0020-03 0° tilt w/Roll Only
060-0020-04 8° tilt w/Roll Only
060-0020-05 0° tilt w/out Roll or Pitch
060-0020-06  8° tilt w/out Roll or Pitch
060-0020-07 0° tilt w/Roll & Pitch, CAA Approved
060-0020-08  8° tilt w/Roll & Pitch, CAA Approved
060-0020-09  0° tilt w/Roll Only, CAA Approved
060-0020-10  8° tilt w/Roll Only, CAA Approved
060-0020-11  0° tilt w/out Roll or Pitch
060-0020-12  8° tilt w/out Roll or Pitch



060-0020-01
- Horizon Gyro (0 deg. tilt)
Price Condition Delivery
$1,900.00 OH OUTRIGHT IN STOCK
$1,750.00 OH EXCHANGE IN STOCK

SEA Repair Capabilities: Yes

060-0020-02
- Horizon Gyro (8 deg. tilt)
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

060-0020-03
- Horizon Gyro
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

060-0020-04
- Attitude Gyro
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

060-0020-07
- Attitude Gyro (KAP150, 0 deg)
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

060-0020-08
- Horizon Gyro (KAP-150, 8 deg)
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

060-0020-09
- Horizon Gyro (KAP-100, 0 deg)
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

060-0020-10
- Horizon Gyro (KAP-100, 8 deg)
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No
