Part #:

Model: GI-275

Garmin - Electronic Flight Instrument
Part Number :


GI 275
FEATURES
  • 3.125" Round Multifunction Instrument
  • Attitude Indicator, HSI, CDI, MFD, EIS, Standby Capability
  • Touchscreen Display with Dual Concentric Knobs
  • Compatible with Garmin and 3rd Party Autopilots
  • Built-in Wireless Connectivity (WiFi & Bluetooth)
  • Available with 60-minute backup battery
  • Approved for Installation in over 1000 Part 23 Class I/II/III & Class III Part 25 aircraft

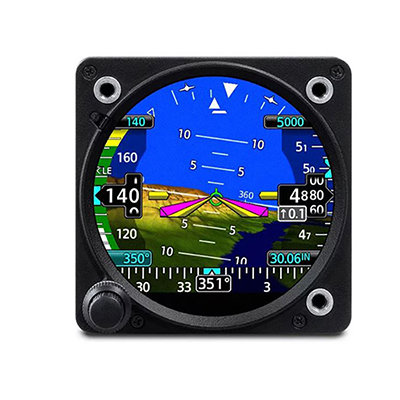

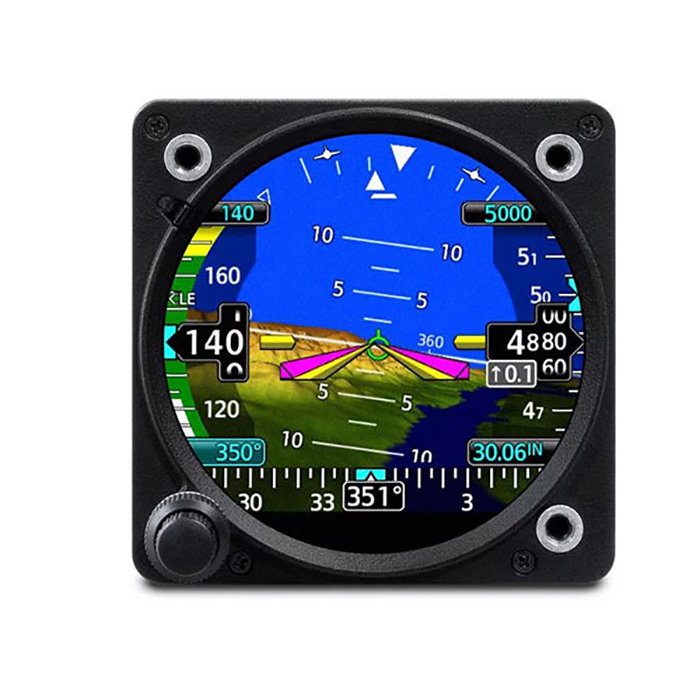

  • Attitude Indicator can be primary source for attitude, turn coordination, altitude, airspeed
  • Integrated solid-state ADAHRS version available
  • Optional Synthetic Vision Technology

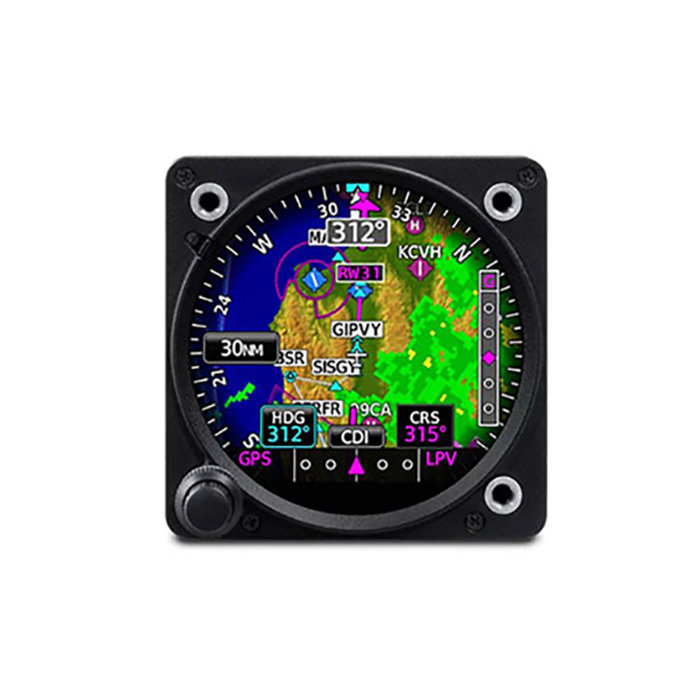

  • HSI version replaces primary HSI; supports digital & analog navigation receivers

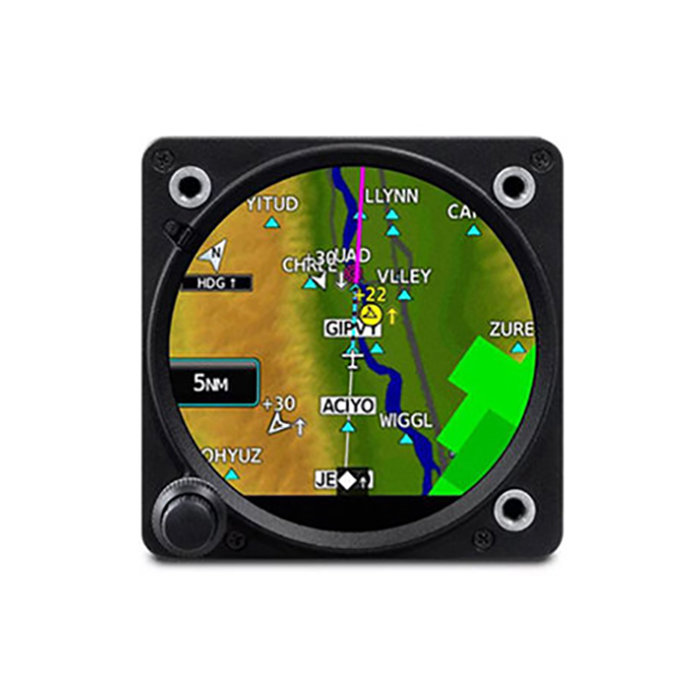

  • HSI Map capability adds dynamic map with overlays for flight plan, terrain, traffic, weather and more
  • Built-in VFR GPS (requires GPS antenna)
  • Automatic Reversionary Capability for seamless reversionary mode with dual GI-275 installations
  • Integrated solid-state ADAHRS version available
  • Radar Altimeter Display

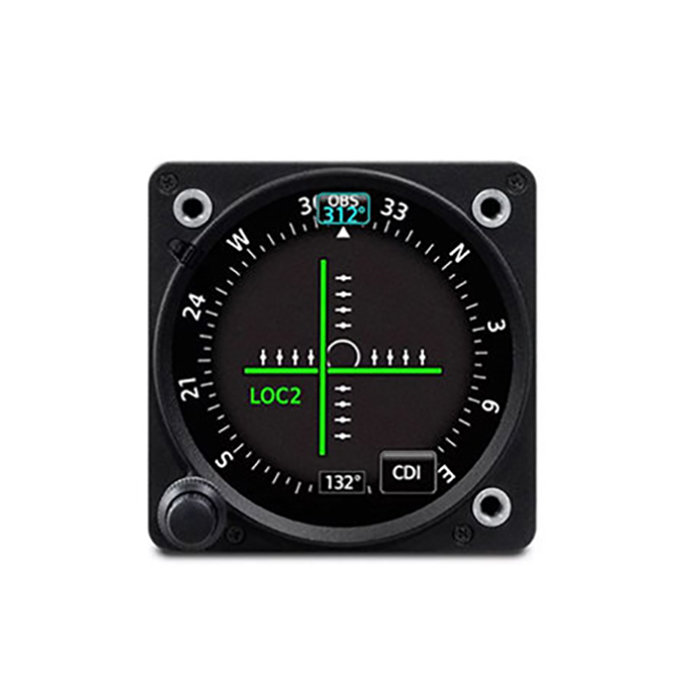

  • CDI supports digital & analog navigation receivers; up to 2 GPS sources, 2 nav sources; compatible with select 3rd party nav sources
  • Standby display integrates with TXi displays, G500/600, G1000/NXi, 3rd party mechanical & EFIS displays

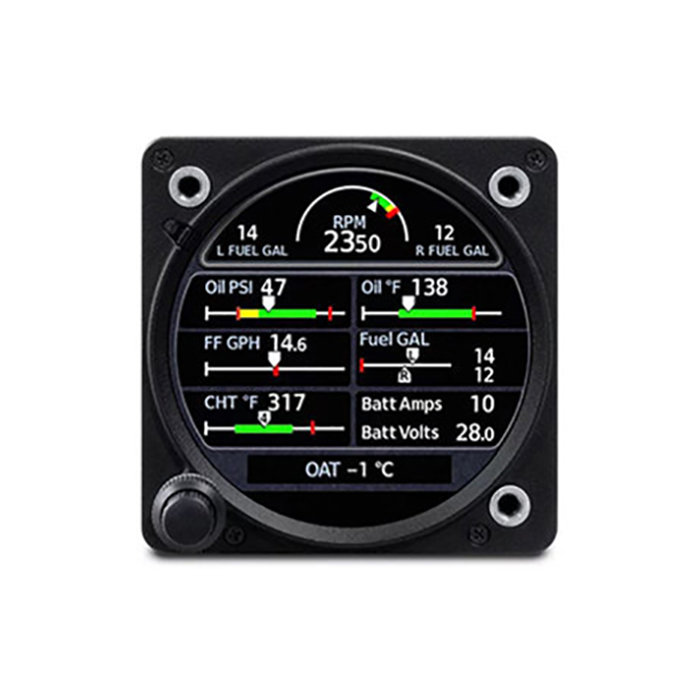

  • Primary Engine Indication System supports single/twin piston aircraft; engine, fuel, eletrical data, fuel computer
  • EIS version provides engine data logging and exporting to Garmin Pilot
  • Updating available via GSB-15
  • ADAHRS + AP version adds interface capability to many popular legacy autopilot systems; Software level Class B/C

        GI275 Autopilot Compatibility PDF

Overview

Installation

SPECIFICATIONS
WIDTH: 3.25" (82.6 mm) display resolution: 480 x 433 pixels
height: 3.25" (82.6 mm) OPERATING VOLTAGE: 14/28 VDC
depth: 6.44" (163.6 mm) temperature range:  -20°C to +55°C
DEPTH W/ CONNECTOR: 7.40" (188.0 mm ALTITUDE RANGE: -1,500 ft to 55,000 ft
weight: 1.9 lbs (0.86 kg) to 2.4 lbs (1.1 kg) WI-FI CLASS: 802.11b/g/n
DISPLAY SIZE: 2.69” diameter
Part Number GI 275 Description:
Please Note: Garmin "010" P/N's are Catalog ONLY
010-02325-00 Base Kit
010-02325-10 Base Kit - EIS w/ GEA 24
010-02325-20 Base Kit - EIS w/ GEA 110
010-02326-10 ADAHRS Kit, Class I/II
010-02326-20 ADAHRS + AP, Class I/II
010-02326-30 ADAHRS, Class III/Part 25
010-02326-40 ADAHRS + AP, Class III/Part 25
010-02327-10 ADAHRS w/ GMU 11, Class I/II
010-02327-20 ADAHRS + AP w/ GMU 11, Class I/II
010-02327-30 ADAHRS w/ GMU 44B, Class III/Part 25
010-02327-40 ADAHRS + AP w/ GMU 44B, Class III/Part 25


010-02325-00
- Electronic Flight Instrument (CDI/MFD)
Price Condition Status
$2,995.00 NEW OUTRIGHT REQUEST
010-02325-10
- Electronic Flight Instrument (4/6 Cyl EIS)
Price Condition Status
$3,995.00 NEW OUTRIGHT REQUEST
010-02325-20
- Electronic Flight Instrument (EIS w/ GEA-11)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
010-02326-10
- Electronic Flight Instrument (ADAHRS, Class I/II)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
010-02326-20
- Elec Flight Inst (ADAHRS+AP, Class I/II)
Price Condition Status
REQUEST NEW INSTALL ONLY
010-02326-30
- Electronic Flight Inst (ADAHRS, Class III/Part 25)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
010-02326-40
- Elec Flight Inst (ADAHRS+AP, Class III/Part 25)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
010-02327-10
- Electronic Flight Inst (ADAHRS, GMU11, Class I/II)
Price Condition Status
REQUEST NEW INSTALL ONLY
010-02327-20
- Elec Flight Inst (ADAHRS+AP, GMU-11, Class I/II)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
010-02327-30
- Electronic Flight Inst (ADAHRS, GMU44B,C3/Part 25)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
010-02327-40
- Elec Flight Inst (ADAHRS+AP,GMU44B,CIII/Part 25)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com

The backup battery offered with the GI-275 is optional for the GI-275 base configuration and standard for the GI-275 ADAHRS, ADAHRS+AP configurations.

The GI-275 requires GPS for attitude aiding.  The GI-275 contains an internal VFR GPS receiver that can be connected to a GPS antenna mounted on the glareshield or it can receive input from an external GPS. As per the STC, the GI-275 can receive GPS data for aiding by the following methods/models:

  • Glareshield GPS antenna
  • GTN-6XX/7XX
  • GNS-4XX/5XX
  • GNS-480
  • GTX 3X5 Transponder w/ internal GPS
  • GPS-175/GNX-375/GNC-355



In order for the GI-275 to be the approved primary attitude indicator for an aircraft on the STC Approved Model List, the ADAHRS version of the GI-275 must be purchased.

Garmin has provided Service Advisory 2051 for general recommendations, materials, and supplies to clean and disinfect Garmin products. Otherwise, not following the recommendations could void the warranty.

  • Cleaners containing ammonia will harm the anti-reflective coating on many Garmin aviation display lenses.
  • Disinfectant with a solution of 70% isopropyl alcohol that does not contain ammonia is preferred. Solutions of up to 91% isopropyl alcohol are also acceptable.
  • Clean the display lens using a clean lint-free cloth and a cleaner that is specified as safe for anti-reflective coatings.
  • For other exposed surfaces such as knobs, buttons, and bezels, a damp cloth with soap and water is acceptable.
  • Bleach-based cleaners, ammonia-based cleaners, or other harsh chemicals on any surface are not recommended.
  • Remove all soap/soap residue to prevent buttons and knobs from gumming up or becoming slippery.
  • Many aviation products are not rated as waterproof. Spraying or wetting the units to the extent where moisture could go beyond the exterior surfaces could damage the unit.
