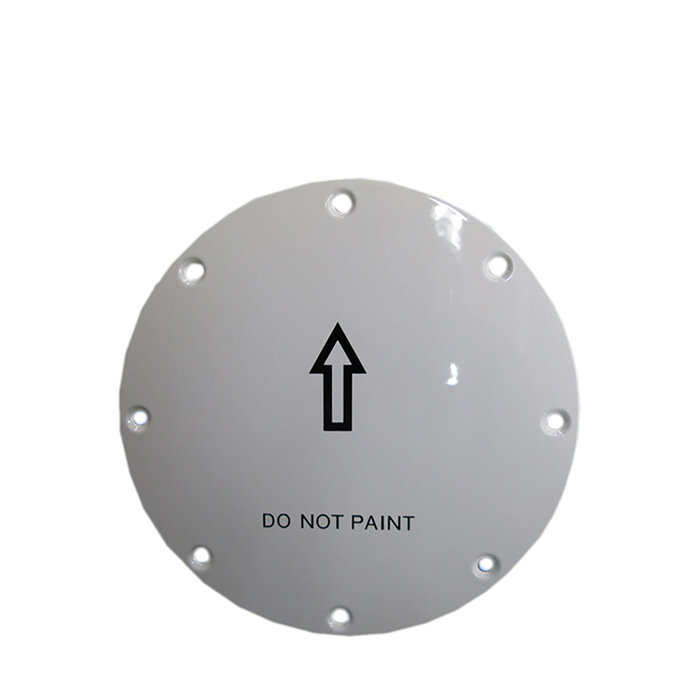

Picture of product S67-2002-12

Part #: S67-2002-12

OEM:

Sensor Systems

Desc:

Radio Altimeter Antenna

Part Number :


S67-2002-12



FEATURES

  • Flush Mounted Radio Altimeter Antenna
  • Circular baseplate requires mounting with eight (8) screws
  • Compaitlbe with 7" diameter horns
  • Provides improved performance and reduced size and weight
  • Ideal for general aviation application
  • Federal & Military Specs: FAA TSO C87, ARINC 707/552, DO-160, MIL-STD-810, MIL-A-9094, MIL-B-5087, MIL-E-5400
  • Suggested to replace 437X-1 and KA-54



SPECIFICATIONS
Frequency: 4200-4400 MHz VSWR: 2.0:1 (4200-4400) 1.5:1 (4275-4325)
Polarization: Linear Impedance: 50 ohms
Beam Width: Roll Plane (E) :45° min Pitch Plane (H) :40° min.  Power Handling: 5 w/avg. 500 w/peak
Side Lobe Level: -40 dB Gain: 9.5 dBi
Lightning Protection: DC grounded  Weight: 8 oz

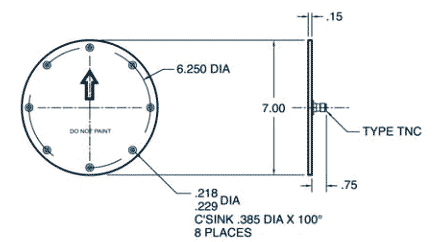

Dimensions: .15" H x 7" D Material: 6061-T6 aluminum / teflon glass
Finish: Skydrol-resistant enamel  Connector: TNC
Temperature:  -65°F to +185°F  Vibration:  10 G's
Altitude:  -1000 ft to +45000 ft  Isolation H-Plane: 16" 80 dB; 20" 88 dB; 30" 90 dB; 36" 95 dB






Part Number: Description:
S67-2002-12 Radio Altimeter Antenna



S67-2002-12
- Radio Altimeter Antenna
Price Condition Status
$1,350.00 SV OUTRIGHT IN WORK
$1,395.00 NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
