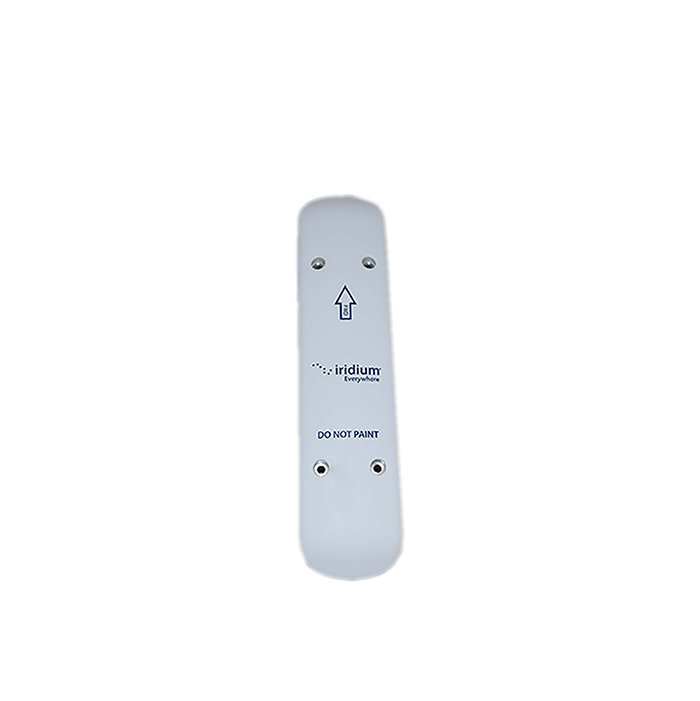

Picture of product S67-1575-195

Part #: S67-1575-195

OEM:

Sensor Systems

Desc:

QUAD Iridium Antenna

Part Number :

S67-1575-195



FEATURES

  • S67-1575-195: Low Profile QUAD Iridium antenna designed to provide up to four independent channels of Iridium Voice and Data Communications in continuous hemispherical coverage via TNC female connectors
  • The Iridium antennas are contained in a sturdy structure covered by a frequency transparent radome that provides enhanced protection against rain, ice and lightning strikes
  • The antenna is qualified for high-speed military and commercial aircraft
  • FEDERAL & MILITARY: FAA TSO C159b, DO-262B & DO-160D/G, MIL-STD-810D, MILHDBK-5400

SPECIFICATIONS
Frequency: 1616.0-1026.5 MHz  VSWR: ≤ 2.0:1
tEMPERATURE: -55°C (-67º F) to +85º C (+185°F) Polarization: RHCP
Impedance: 50 Ohms Power: 10 Watts
Gain:  -1.0 dB Min. @Zenith  Weight: 1.6 lbs
finish: Skydrol resistant enamel Lightning protection: DC Grounded
Material: 6061-T6 Aluminum Alloy/ Thermoset Plastic altitude: 55,000 ft.
Connector: TNC Female (4) axial ratio: ≤ 3.0 dB @ Zenith

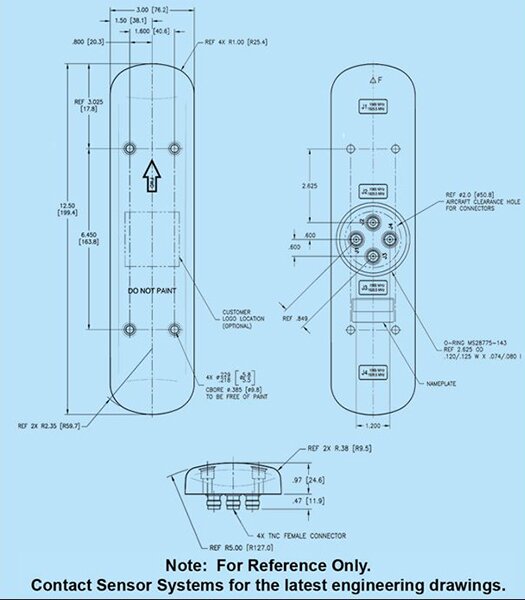

S67-1575-195 Diagram



Part Number: Description:
s67-1575-195 QUAD Iridium Antenna



S67-1575-195
- QUAD Iridium Antenna
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
